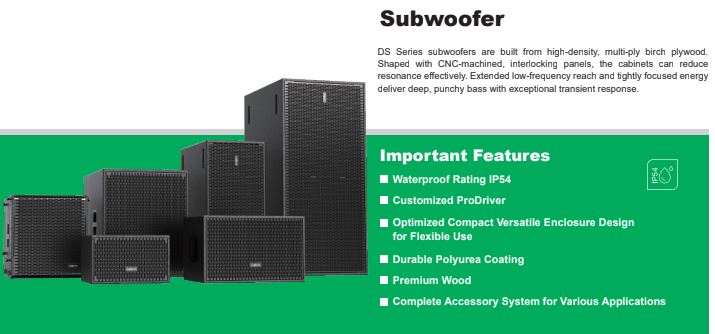

Single 12" single Flyable Subwoofer, IP54, 400w

Audiocenter DS112S — 12" Passive Subwoofer

The Audiocenter DS112S is a 400W passive subwoofer using a single 12" driver with a 2.5" voice coil, extending low-frequency reproduction to 45Hz in an IP54-rated CNC-machined multi-ply birch enclosure. At 121dB continuous / 127dB peak SPL, it is the compact subwoofer complement to the DS series full-range cabinets — built to the same weather resistance, coating, and construction standard as the DS06 through DS12, in a cabinet that at 550×340×384mm and 25kg is practical for a wide range of permanent installation and portable deployment scenarios.

The 8Ω impedance with external (active) crossover means the DS112S requires a separate crossover or DSP processor for system integration. Two side handles and an M20 base pole mount allow it to ground-stack or pole-mount beneath a DS series full-range cabinet. IP54 rating and –20°C to +50°C operating range confirm it as a genuine permanent outdoor installation option.

Key specifications

• Power handling: 400W (8Ω, +2, –2)
• Frequency response: 45Hz–150Hz
• Maximum SPL: 121dB continuous / 127dB peak
• Driver: 1×12", 2.5" voice coil
• Crossover: External (active) — DSP or active crossover required
• Input: Speakon 4-pin
• Weather rating: IP54
• Operating temperature: –20°C to +50°C
• Cabinet: CNC machined multi-ply birch, Polyurea coating, iron mesh grille
• Pole mount: M20 base, Ø35mm
• Handles: 2× side
• Dimensions: 550×340×384mm / Weight: 25.0kg
