Single 10", Passive full range speaker

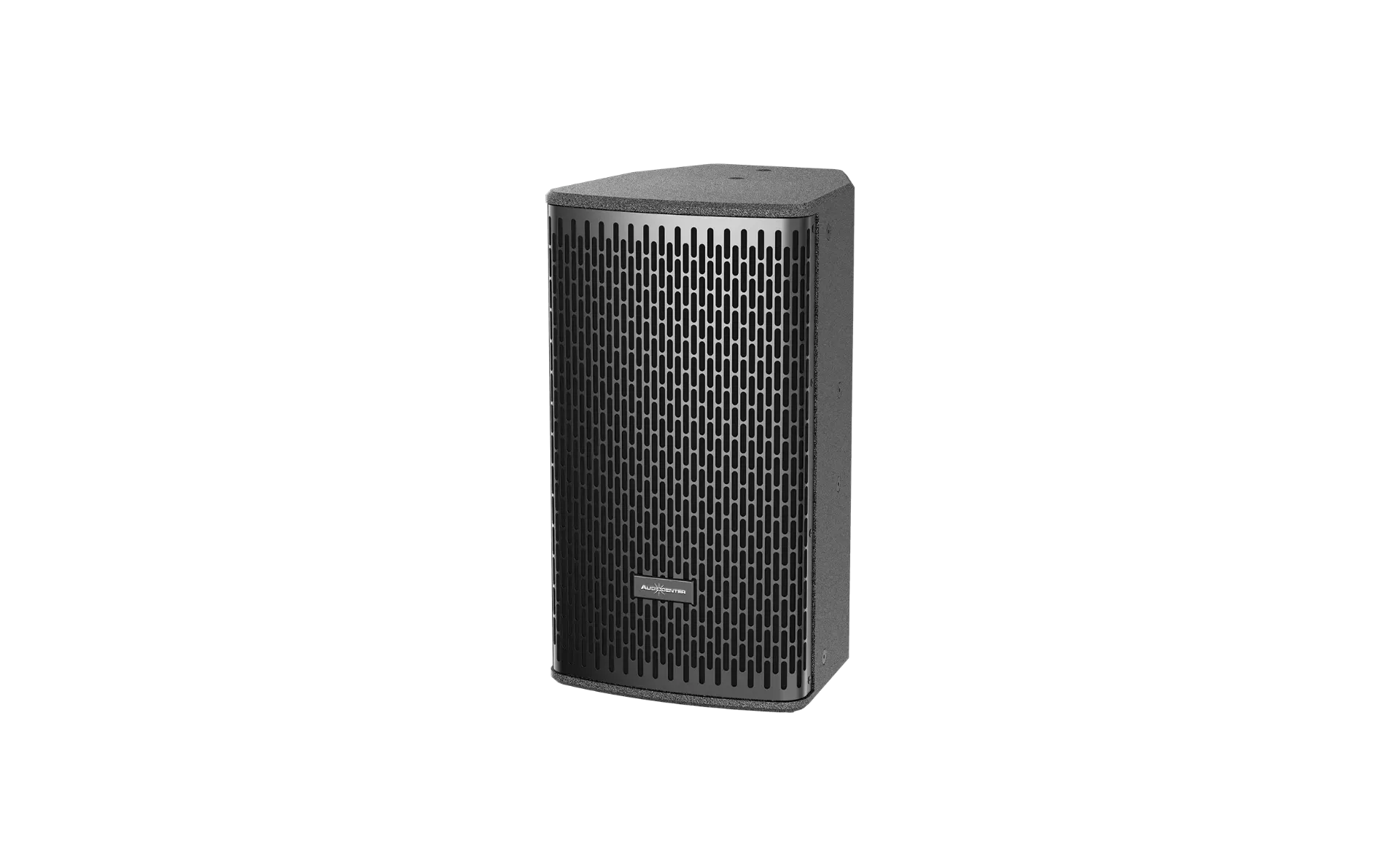

Audiocenter DS10 - 10" Point-Source Installation Loudspeaker

The Audiocenter DS10 is a 250W passive full-range loudspeaker with a 10" LF driver, 2.5" voice coil, and 124dB continuous / 130dB peak SPL- the top of the DS series and the cabinet specified when a venue needs the full range of what a compact point-source installation speaker can deliver. Frequency response extends to 55Hz (–10dB), covering programme material from bass-heavy music to speech reinforcement without subwoofer support in most mid-size installations. At 288×526×325mm and 13kg, it is larger than the DS06 and DS08 but still compact relative to its output capability. IP54 rating and Polyurea coating make it a permanent outdoor installation option, not just an indoor one.

The DS10 also introduces two features not present on the smaller models: a 1.75" voice coil HF driver for improved high-frequency power handling at sustained levels, wider coverage options at 90°×60° or 60°×90°, selectable 0° or 10° pole mount angle at the base, and a rear handle for single-person installation and positioning.

Key specifications

• Power handling: 250W (8Ω)
• Frequency response: 55Hz–20kHz (–10dB)
• Maximum SPL: 124dB continuous / 130dB peak (1m)
• Coverage: 90°×60° or 60°×90° (rotatable horn)
• Crossover: Passive, 1.4kHz
• HF driver: 1.75" voice coil, 1.0" exit
• LF driver: 10" driver, 2.5" voice coil
• Input: Speakon 4-pin
• Weather rating: IP54
• Cabinet: CNC wood construction, Polyurea coating, iron mesh grille
• Mounting: M8 fly point, Ø35mm pole mount base (0° or 10° selectable), wall bracket compatible
• Handle: 1× rear
• Dimensions: 288×526×325mm / Weight: 13.0kg

How does the DS10 sit at the top of the DS range?

The three DS models form a coherent range with a clear progression:

The DS10's 130dB peak SPL puts it in the territory of full-size installation cabinets from other manufacturers in a package that still flies on an M8 insert, pole-mounts on a standard 35mm stand, and fits a single person to carry and position with the rear handle. The wider 90° coverage pattern suits larger rooms where the DS08's 70° pattern would leave coverage gaps without additional cabinets.

Where does the DS10 get specified?

Large function rooms and event spaces — 130dB peak and 55Hz low-frequency extension means the DS10 handles full-range programme at levels that satisfy live music and DJ events without subwoofer augmentation in rooms up to medium-large size. The 90° coverage pattern fills wide flat-floor spaces from a single flown or pole-mounted cabinet position.

Outdoor stages and live music venues — 250W continuous power handling sustains output through extended performances at high levels. IP54 keeps it operational in rain and splash environments permanently, not just temporarily. Side-of-stage, delay tower, or main PA in smaller outdoor venues — the DS10 covers all three roles.

Theatres and performing arts spaces — the 1.75" HF voice coil handles sustained vocal and orchestral programme at high levels without the compression that limits smaller drivers in demanding theatrical applications. The 1.4kHz crossover point keeps the transition between drivers in a natural part of the frequency range for vocal clarity.

Sports facilities and multi-use halls — the selectable 0° or 10° pole mount angle lets the DS10 be aimed precisely at the coverage area from a fixed pole position — useful in sports halls where the speaker needs to address a specific seating zone or court area rather than firing straight ahead.

Houses of worship with large sanctuaries — 55Hz low-frequency extension with a 10" driver produces the body and warmth in music reproduction that a smaller driver cannot sustain at scale. The rotatable horn adapts to the room geometry. The result is a cabinet that handles both contemporary music at full levels and spoken word with equal clarity.

Bars, nightclubs, and entertainment venues requiring high output — where the DS08 reaches its limits at sustained high levels, the DS10's 250W power handling and larger voice coils maintain output quality through a full night of programme without thermal compression.

Custom colour and finish

Black Polyurea coating is standard. Custom colours are available through Audiocenter for project-specific requirements. Contact Edwards to discuss.
