Network SIP 6.5" Ceiling Speaker –built in Mic

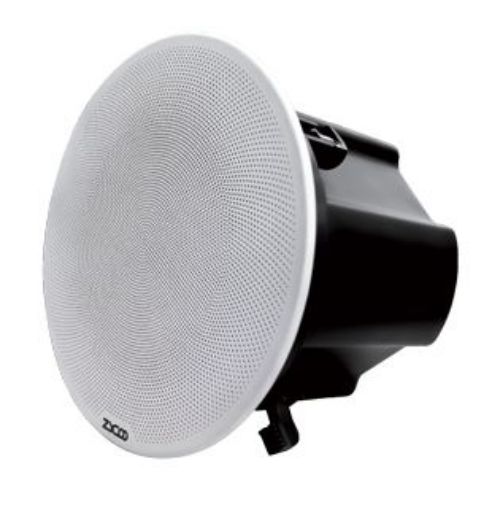

ZYCOO IPS-C1 Network Ceiling Speaker

The ZYCOO IPS-C1 is a SIP ceiling speaker that handles live paging, scheduled announcements, background music and emergency notifications over your existing network. It delivers up to 16 watts from a single PoE/PoE+ cable, has a built-in microphone for two-way talkback, and works with the ZYCOO IP Audio Center or any third-party IP-PBX.

It suits schools, healthcare facilities, offices, retail stores, hospitality venues and other indoor public spaces where announcements need to be clearly understood.

Cover more area with fewer network ports

The IPS-C1 works as a standalone speaker, or you can pair it with one ZYCOO APS-C1 extension ceiling speaker. The extension connects to the IPS-C1 rather than to the network, so you cover a larger space without another cable run or another PoE switch port. For rooms that need two speaker positions, this reduces cabling and switch costs.

Audio that adjusts to the room

Wideband HD audio is tuned for speech clarity, which matters more than music fidelity when the job is paging and alerts. Adaptive volume control (AGC) listens to ambient noise through the built-in microphone and raises or lowers the output to suit. A speaker in a busy corridor or cafeteria stays intelligible, and the same speaker in a quiet office is not louder than it needs to be.

Paging, talkback and zones

• Zone paging: send live or scheduled announcements to selected speakers or groups.
• Two-way talkback: the built-in microphone allows two-way audio from the speaker, with no separate intercom unit.
• Multicast and peer-to-peer: multicast paging scales across large sites, and P2P allows direct audio between endpoints without a server.
• Three SIP lines: register the speaker to more than one SIP account or system.

Standard protocols and integration

The IPS-C1 uses standard SIP, so it registers with the ZYCOO IP Audio Center and with third-party IP-PBX platforms. ONVIF compatibility lets it connect to video surveillance systems for event-linked paging and security workflows. A flexible API supports integration with other platforms, automation tools and custom applications.

Installation and management

PoE/PoE+ carries power and data on one Ethernet cable. The speaker has integrated attachment points for safety cables and secondary securing, which helps with installations that require a backup fixing. Configuration, monitoring and maintenance are done remotely through a web interface, so you do not need a ladder to change a setting.

Key features

• SIP-enabled ceiling speaker with up to 16W integrated audio output
• Supports one APS-C1 extension speaker without an extra network connection
• Built-in microphone for two-way talkback
• Adaptive volume control based on ambient noise
• Wideband HD audio tuned for speech clarity
• Three SIP lines, multicast and P2P
• PoE/PoE+ powered
• ONVIF compatible
• Web-based configuration and monitoring
• Flexible API
• Compatible with ZYCOO IP Audio Center and third-party IP-PBX systems
• Safety cable and secondary securing attachment points

Frequently asked questions

Does the IPS-C1 need a separate amplifier?
No. It has up to 16 watts of integrated audio output and runs as a standalone network speaker.

Can I connect more than one speaker to a single network port?
Yes. One APS-C1 extension ceiling speaker can connect to the IPS-C1, which extends coverage without another network cable or PoE switch port.

Does it work with third-party phone systems?
Yes. It uses standard SIP and is compatible with the ZYCOO IP Audio Center and other third-party IP-PBX systems.

Can people talk back through the speaker?
Yes. The built-in microphone supports two-way communication.

Is it suitable for emergency notifications?
Yes. It supports emergency notifications and zone paging, and ONVIF compatibility allows integration with video surveillance platforms.
