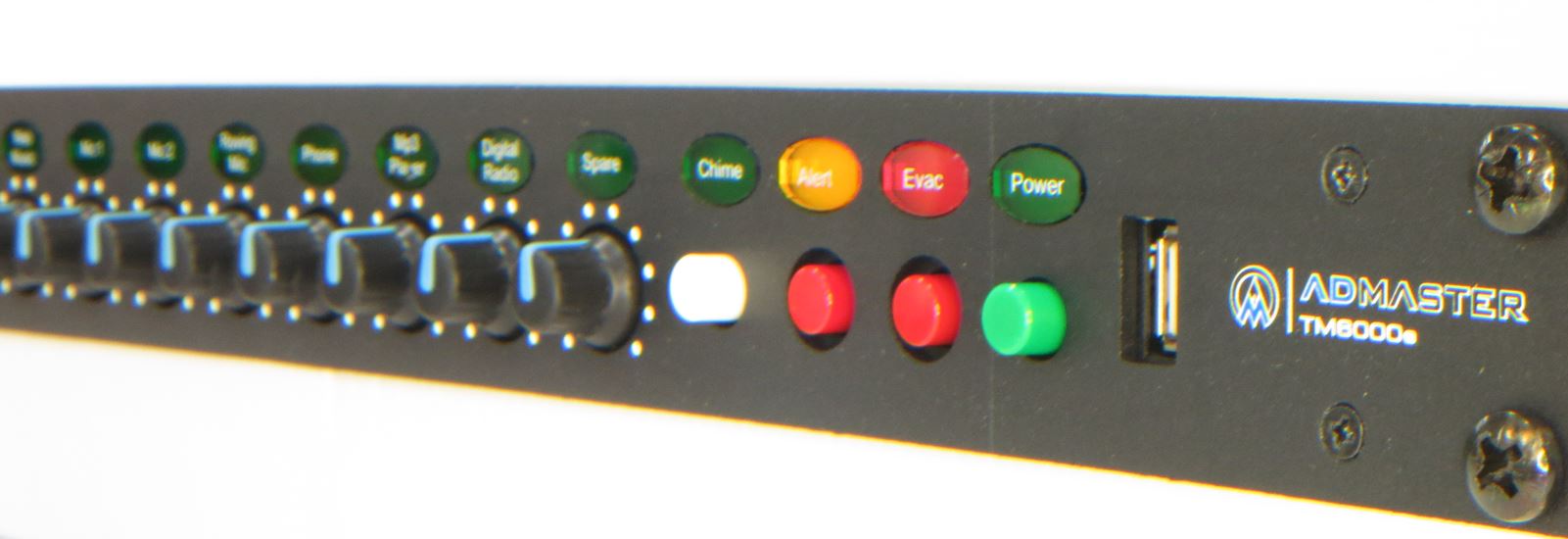

Admaster TM6000e Digital Advert Player and Audio Mixer

Intelligent Audio Management for Retail and Commercial Environments

The Admaster TM6000e is a professional-grade digital audio mixer and advertisement player designed specifically for retail stores, supermarkets, and commercial spaces where dynamic audio management is essential. Combining sophisticated mixing capabilities with intelligent automatic level control, the TM6000e ensures your messages, music, and announcements are heard clearly regardless of changing ambient noise conditions.

Key Features

Automatic Level Control (ALC)

The TM6000e's intelligent ALC system continuously monitors ambient noise levels through speakers in your sampling area and automatically adjusts audio output to maintain optimal clarity. Whether your store is quiet in the early morning or bustling during peak hours, your customers will hear announcements and music at the perfect volume.

Comprehensive Channel Management

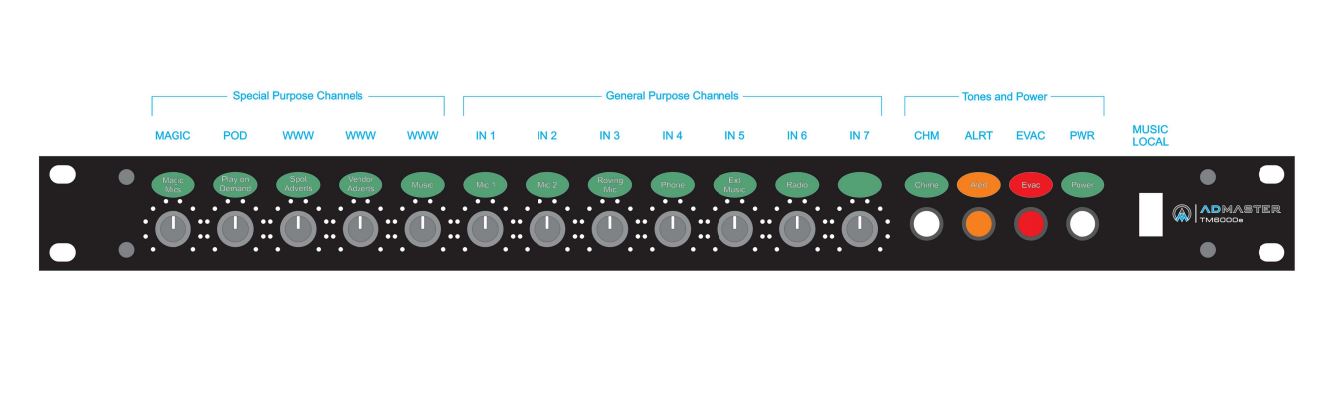

• 7 General Purpose Input Channels - Connect microphones, music players, telephone paging systems, and other audio sources
• Magic Microphone Support - Up to 16 wireless Magic Microphones can be connected in parallel for flexible paging throughout your facility
• Flexible Configuration - Each channel features independent volume, bass, treble, priority settings, and voice-operated switching (VOX)

Play on Demand (POD) System

Empower your staff with wireless POD buttons that can trigger pre-recorded messages, promotions, or departmental pages with a single press. The system supports up to 32 wireless POD buttons, each configurable for one-shot or continuous operation.

• Up to 16 POD Receivers for extended coverage
• Battery-operated buttons (AAA Lithium) for placement anywhere
• Easy discovery and mapping through web interface

Network-Enabled Management

Access all configuration and diagnostic tools through any web browser on your network. The TM6000e features:

• Static IP configuration for secure network integration
• Comprehensive diagnostics and monitoring
• Remote access to all mixer settings
• Internet connectivity for firmware updates and content delivery

Professional Audio Quality

• Transformer-balanced output (1V RMS into 600Ω)
• Balanced/unbalanced input support
• Individual channel tone control (±10dB bass and treble)
• Priority-based channel management (prevents message overlap)

Reliable Power Management

• Dual power supply support (24VDC mains + battery backup)
• Automatic failover ensures uninterrupted operation
• Low-power standby mode
• Designed for 24/7 operation

Ideal Applications

• Supermarkets & Grocery Stores - Department paging, promotional announcements, background music with automatic volume adjustment
• Retail Chains - Centralised audio management with staff paging capability
• Shopping Centers - Multi-zone announcements with priority override
• Warehouses - Clear communication in high ambient noise environments
• Healthcare Facilities - Reliable paging with gentle background music
• Corporate Offices - Professional audio distribution and emergency notification

What's Included

• Admaster TM6000e Digital Audio Mixer
• Operating System Micro-SD card (pre-installed)
• USB Flash drives for settings and music storage
• 24VDC power supply
• Installation and commissioning guide
• Technical documentation

Why Choose the Admaster TM6000e?

Set and Forget Operation - Once calibrated, the ALC system continuously adapts to your environment, eliminating the need for manual volume adjustments throughout the day.

Staff Empowerment - Wireless POD buttons let staff trigger announcements instantly from anywhere in your facility without returning to a central paging station.

Future-Proof Design - Network connectivity enables remote updates and integration with modern business systems, while maintaining compatibility with existing audio equipment.

Professional Results - Transformer-balanced outputs, individual channel EQ, and priority-based mixing ensure broadcast-quality audio in demanding commercial environments.

Support & Integration

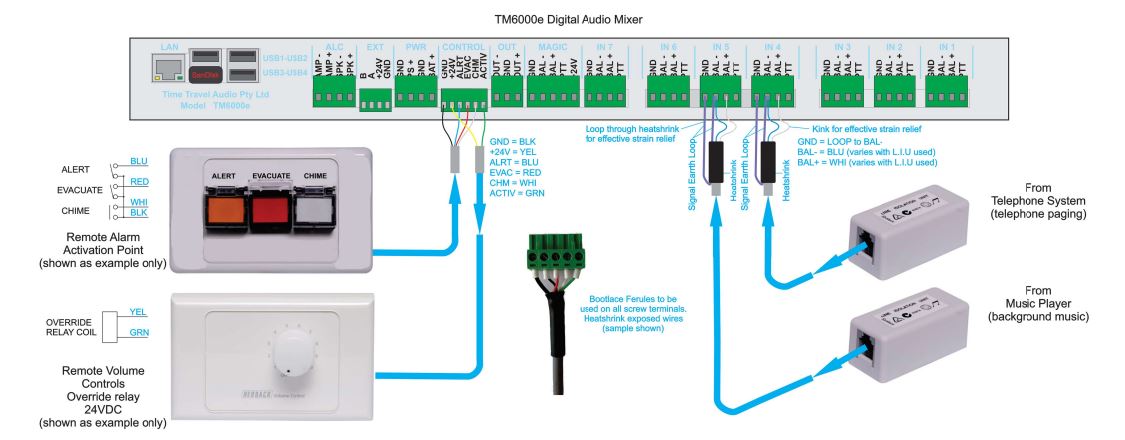

The TM6000e integrates seamlessly with your existing audio infrastructure. Our team provides comprehensive commissioning services including network configuration, ALC calibration, and staff training. All configuration is performed through intuitive web-based interfaces accessible from any browser on your network.

Need assistance with specification or installation? Contact our technical team for expert guidance on optimizing the TM6000e for your specific environment, and feel free to read through the TM6000e FAQ here.

For detailed technical specifications, installation guides, and pricing information, please contact our sales team or consult the complete technical documentation.
