Wearable Panic Button, 150m range

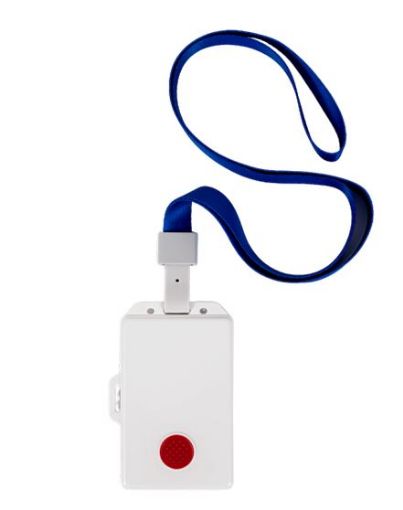

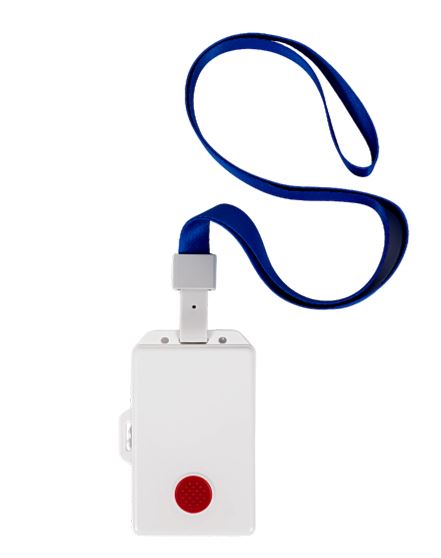

ZYCOO IPS-K-BT1 BLE Wearable Panic Button

The ZYCOO IPS-K-BT1 is a neck-worn Bluetooth Low Energy button for staff duress and panic alerts. A staff member presses the large red button and the alert is sent to compatible BLE-enabled equipment, such as the ZYCOO IPS-M1-D1W multi-info speaker, which responds with audio, a message on screen and a strobe. It is IP66 rated, comes with a lanyard, and has a card slot so it can double as an ID badge holder.

It suits schools, hospitals and nursing homes, offices and events, where staff need a way to call for help without finding a phone or reaching a wall button.

A panic button people will actually wear

Staff duress devices only work if they are on the person when something happens. The IPS-K-BT1 is a flat 8.5mm badge on a lanyard, and it holds a standard CR80 ID card, so it can replace the badge a person already wears. The button is a single soft rubber button, large enough to find by feel and press under stress. A red LED and a buzzer confirm that the button has been pressed.

Range and battery

• BLE 5.0: transmission range up to 150m in open areas.
• Battery: 800mAh Li-Mn cell with a typical life of 3 years on default settings.
• Real-world range: walls, metal and other radio traffic reduce range, and volume settings and usage affect battery life. Test coverage on site before relying on it.

Card holder, NFC and access

The side slot takes a standard CR80 card. The button also supports NFC, which can be used to pass data to access control systems. That means one device can serve as ID badge, access credential and panic button. For schools and offices it can also support attendance, visitor flow management and temporary ID badges for events.

Built for harsh conditions

The polycarbonate case is IP66 rated against dust and water jets, and operates from -20°C to +60°C. It suits kitchens, wards, workshops and outdoor duties where a standard badge holder would not last. The housing is white with a red button.

Works with ZYCOO speakers

The IPS-M1-D1W multi-info speaker supports wearable BLE smart buttons. When the button is pressed, the speaker can respond with coordinated audio and visual alerts. The alert can also be tied into the wider system, for example with ONVIF-linked cameras or the ZYCOO IP Audio Center.

Specifications

Frequently asked questions

What is the IPS-K-BT1 used for?
It is a wearable duress and panic button. Staff press the button to send an alert to compatible BLE-enabled ZYCOO equipment.

Which speakers does it work with?
It works with ZYCOO equipment that supports wearable BLE smart buttons, such as the IPS-M1-D1W multi-info speaker.

How far does it reach?
Up to 150m in an open area. Indoors, walls and other obstacles reduce this, so test coverage on site.

Does it need charging?
No. It has a sealed 800mAh battery rated at about 3 years on default settings. The battery is not replaceable.

Can I use it as an ID badge?
Yes. It has a CR80 card slot with side insertion, and NFC for access control data entry.

Is it waterproof?
It is rated IP66, which covers dust and water jets.

Does it come with a lanyard?
Yes. One lanyard is included.
