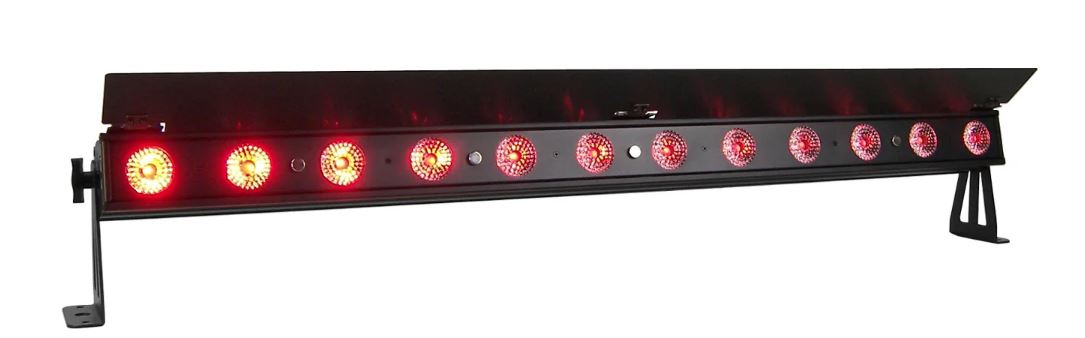

Pixel Bar /Wall Wash with 12 x 12W RGBWAU LEDs

12 x 12W Pixel Control Bar with barndoor, RGBWAU  -PIXBAR12H

The Event Lighting PIXBAR12H is a high-performance pixel control bar designed for professional stage, theatre, concert, and film production lighting. Featuring 12 x 12W RGBWAU LEDs, it delivers rich, vibrant colours with pixel-mapping capabilities, perfect for dynamic stage effects, footlights, and backdrop illumination. With a 30° beam angle (optional 55°), the PIXBAR12H ensures precise light distribution, making it suitable for theatrical performances, concerts, DJ setups, and architectural lighting.

This fixture offers smooth 4 x 16-bit dimming curves, adjustable strobe settings (1-30Hz), and multiple control modes, including DMX, manual, auto, sound active, and master/slave. The included barndoor and frost filter provide greater light shaping and diffusion, allowing for fine-tuned creative control.

Built for reliability, the PIXBAR12H features a rugged matte black aluminium housing, fanless cooling for silent operation, and True1 in/out with 3/5 Pin DMX connections for seamless integration into any lighting setup. With a robust 50,000-hour LED lifespan, it is the perfect long-term lighting solution for professional productions.

DJ and Club Lighting

• Use as a dynamic backdrop behind the DJ booth, up walls and pillars

TV & Film Production

• Flicker-free operation ensures smooth performance on camera.

• Adjustable dimming curves allow precise lighting control for different scenes.

• Silent fanless operation is ideal for studios and broadcast environments.

Stage & Theatre Productions

• Create dramatic colour washes and effects for live performances.

• Use as footlights or cyc lighting to add depth and atmosphere.

Concerts & Live Events

• Enhance stage designs with vibrant, pixel-mapped lighting effects.

• Synchronise with music for dynamic, beat-driven visuals.

• Use as uplighting for backdrops or truss warmers.

Architectural & Venue Lighting

• Provide ambient lighting for bars, nightclubs, and event venues.

• Highlight walls, columns, or stages with smooth, consistent washes.

Specifications

Photometrics

• Light Source: 12 x 12W RGBWAU LEDs
• Beam Angle: 30° (optional: 55°)
• Output: 2,050 lux @ 2m RGBWAU full on
• PWM: 12,000Hz
• LED Life: 50,000 hours

Effects

• Dimming: 4 x 16-bit Dimming Curves
• Strobe: 1~30Hz

Power

• Input Voltages: 100~240V AC, 50/60Hz, 150W
• Power Connection: True1 in/out

Control

• Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 3 / 4 / 4A / 8 / 12 / 24 / 72 / 74
• Control Interface: 3-pin and 5-pin XLR in/out
• Software Upgrade via DMX: Yes

Housing

• Housing Materials: Aluminium, matte black finish
• Barndoor: included
• Frost filter: included
• Cooling: Fanless Cooling
• Dimension: 1050 x 165 x 80mm
• Net Weight: 4.5kg

MISC

• Road case: PIXBAR12CASE6WC

Download product datasheet

Download user manual

Warranty: 3 years
