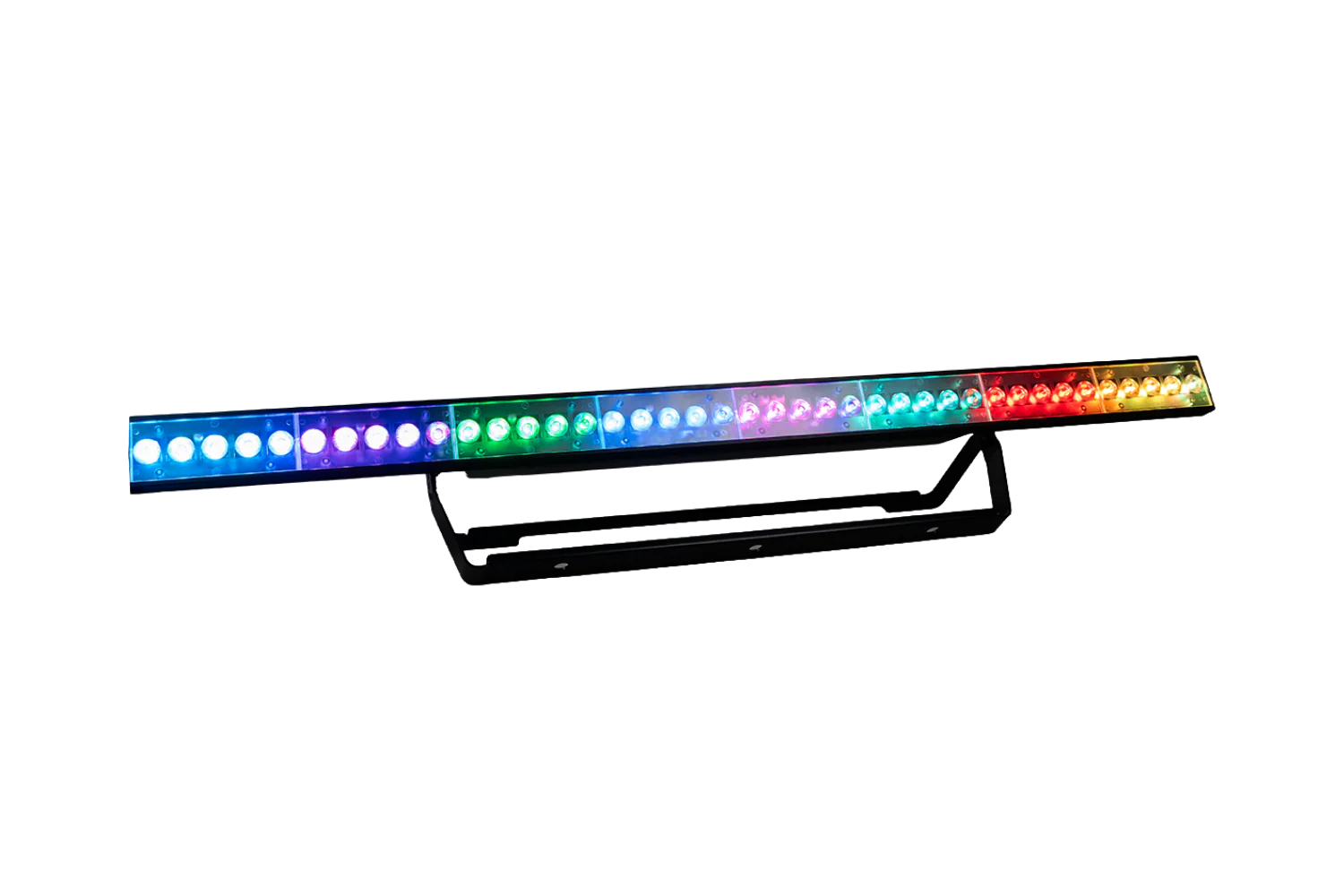

Pixel Control Bar with 40x 1.5w RGB LED, 14 deg

40 x 1.5W RGB Pixel Control Bar

Command the stage with pixel-precise control and vivid RGB colour mixing. The PIXBAR40FXT packs 40 individually addressable 1.5W RGB pixels into a slim, low-profile aluminium bar, delivering everything from smooth colour washes to dynamic chase effects and crisp pixel-mapped graphics.

Built for Creative Control

Each pixel can be controlled independently, giving lighting designers the freedom to create intricate chases, gradients, and text or logo effects across a single bar or an array of fixtures linked together. With DMX channel modes ranging from a simple 1-channel setup to a full 122-channel pixel-mapping mode, the PIXBAR40FXT scales effortlessly from basic wash duties to complex, high-resolution programming.

Punchy Output, Smooth Performance

With an output of 2,450 lux at 2 metres and a tight 14° beam angle, this bar throws a bold, saturated beam that cuts through on stage, in clubs, or on broadcast sets. A 4,000Hz refresh rate keeps colour transitions flicker-free on camera, while 5 selectable 16-bit dimming curves and a 1–25Hz strobe function offer precise, flicker-free control for any environment.

Reliable, Low-Maintenance Design

Housed in a matte black aluminium enclosure with fanless cooling and built-in temperature protection, the PIXBAR40FXT runs silently — ideal for theatres, studios, and quiet event spaces. The included frost filter softens pixel definition for a smoother wash when needed, and with an LED life of 50,000 hours, it's built for years of dependable service.

Flexible Control Options

Operate via DMX, manual, auto, sound-active, or master/slave modes, with multi-fixture chase capability for synchronized rig-wide effects. RDM support allows remote diagnostics and configuration, while the 4-button LCD control panel makes on-fixture setup fast and intuitive. True1 power in/out and 5-pin XLR DMX in/out simplify daisy-chaining across large installations, and optional Wireless DMX (WDMXTRXII/CRMXTRXII) compatibility keeps cabling to a minimum. Software upgrades can be pushed directly via DMX, keeping fixtures current without removing them from the rig.

Key Features

• 40 x 1.5W individually addressable RGB pixels
• 2,450 lux @ 2m output with 14° beam angle
• Up to 122 DMX channels for full pixel-mapping control
• 4,000Hz refresh rate for camera-friendly performance
• Fanless, silent cooling with thermal protection
• Matte black aluminium housing with included frost filter
• DMX, sound-active, auto, and master/slave operation modes
• RDM and wireless DMX ready
• 3-year warranty

Dimensions: 992 x 152 x 78mm (39.06" x 5.98" x 3.07") | Weight: 2.8kg | Power: 100–240V AC, 65W consumption
