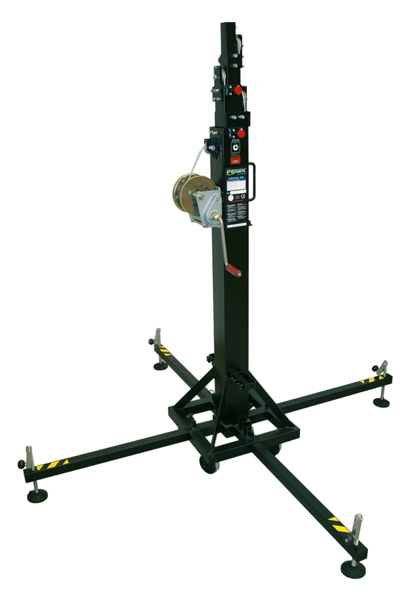

Fenix MEGARA 300 Lifting Tower
Heavy-Duty Front-Loading Lift for Lighting, Speakers & Truss Systems
The Fenix MEGARA 300 is a professional-grade telescopic lifting tower designed for safely raising heavy loads in demanding production environments. With a maximum load capacity of 300 kg and a lifting height of 6.10 metres, this front-loading tower is the ideal choice for medium to large-scale concerts, festivals, corporate events, and audiovisual installations.
Built from galvanized steel to EN 10305-5 standards, the MEGARA 300 offers exceptional strength, stability, and weather resistance. Its smooth winch mechanism (AL-KO 900 Compact) and telescoping mast enable precise, controlled lifting for line array speakers, trussing, and lighting fixtures.
Despite its heavy-duty capabilities, the MEGARA 300 is highly portable and easy to assemble, with a compact folded height of 1.92 m and integrated wheels for effortless transport. It features safety pins, section-triggered locking, and a bubble level for quick vertical alignment, delivering confidence and security during every lift.
Key Features
Max. Height: 6.10 m
Max. Load Capacity: 300 kg
Folded Height: 1.92 m
Weight: 90 kg
Material: Galvanized Steel (EN 10305-5)
Winch: AL-KO 900 Compact, 900 kg
Cable: Galvanized Steel (EN 12385-4), 6 mm diameter, 7×19
Cable Load Rating: 2,870 kg
Twisting Resistance: 1,770 N/mm²
Work Area (Leg Span): 1.44 x 1.44 m
Base Footprint (Folded): 0.47 x 0.47 m
Minimum Load Required: 25 kg
Integrated Safety: Section-triggered lock, safety pins, and bubble level
Perfect For:
Line array speaker lifting
Professional lighting rig support
Stage and truss structures
Touring AV rental fleets
Indoor and outdoor events
Upgrade your production toolkit with the MEGARA 300—a powerful, safe, and reliable lifting tower that performs under pressure and travels with ease.
