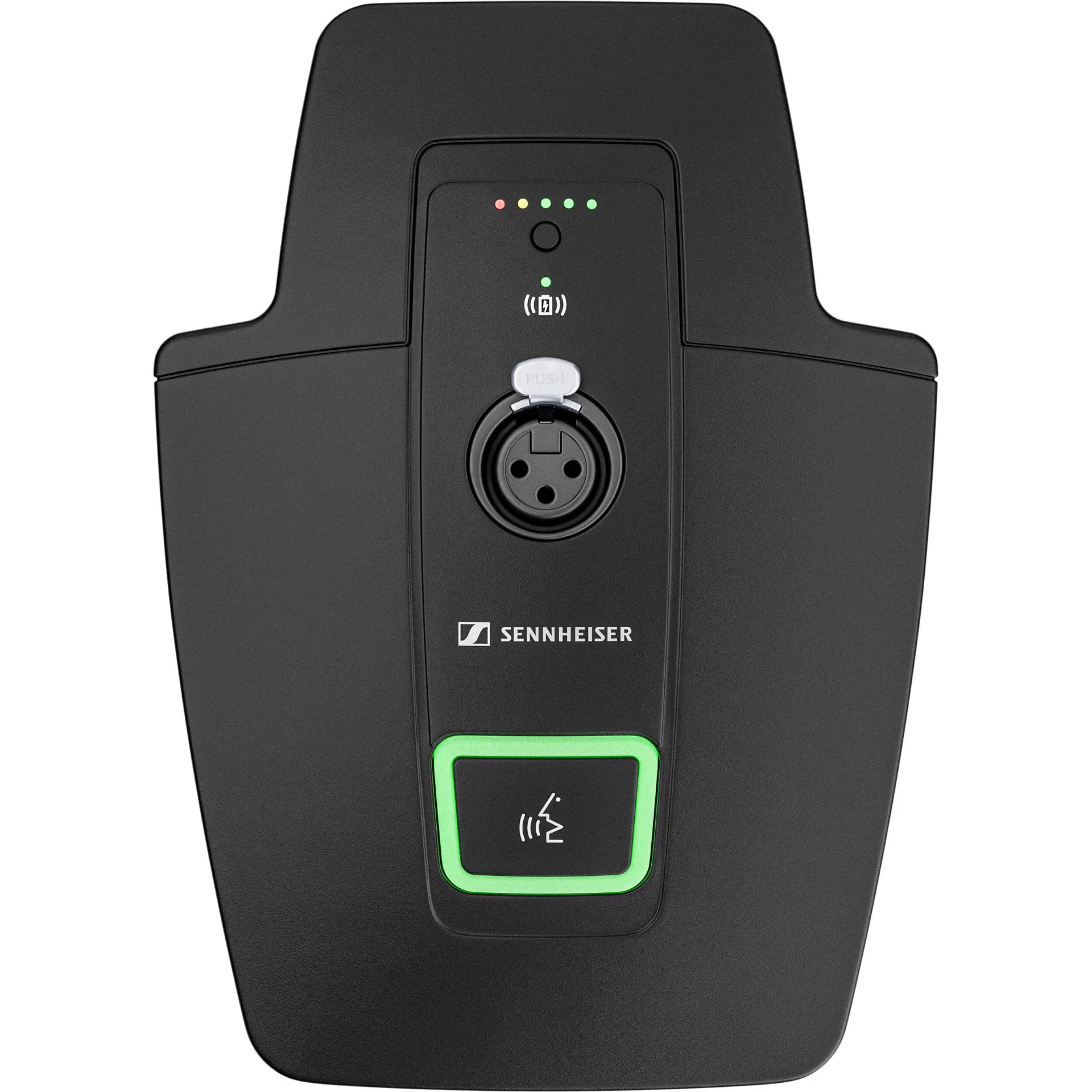

EW-DX TS 3-PIN Wireless Tablestand Transmitter

The Sennheiser EW-DX TS is a professional wireless tablestand transmitter designed for seamless use with Sennheiser gooseneck microphones (3-pin XLR version) and EW-DX digital wireless receivers. Built for podiums, boardrooms, lecture halls, and broadcast environments, it delivers exceptional clarity and advanced functionality in a compact, elegant housing.

Offering 134 dB dynamic range, 24-bit digital audio, and secure AES-256 encryption, the EW-DX TS ensures reliable and interference-free transmission, even in demanding RF environments. With Bluetooth Low Energy (BLE) sync, inductive charging, and up to 11 hours of operation using the included BA 40 battery, this unit is as smart as it is sturdy.

Key Features:

Compatible with EW-DX digital wireless systems

Accepts 3-pin XLR Sennheiser gooseneck microphones

134 dB dynamic range for pristine audio performance

Equidistant channel grid with 3200 selectable frequencies

Programmable mute button for custom control

Inductive charging via CHG 2N base (sold separately)

Secure AES-256 encryption for protected transmission

Bluetooth sync and app control via Smart Assist or Control Cockpit

Durable metal housing with compact footprint

Perfect for corporate AV, worship venues, academic institutions, and professional conferences, the EW-DX TS brings wireless flexibility and high-end audio performance to any application requiring fixed tabletop microphones.

System
Wireless Technology	Digital UHF
RF Frequency Band	S4-10: 630 - 693.8 MHz
Frequency Step Size	25 kHz
RF Channel Scanning	Auto-Scan
Max Operating Range	328.1' / 100 m (Line of Sight)
Built-In Recorder	No
Control App Support	Yes, Available for Android/iOS
Bluetooth	5.1 LE
Bluetooth Operating Distance	120' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution	24-Bit
Latency	1.9 ms
Encryption	AES 256
Transmitter
Transmitter Type	Gooseneck Base
RF Output Power	10 mW (ERP) 10 mW (EIRP)
Audio I/O	1 x XLR 3-Pin Female Input
Included Cable Connector	None
Muting	Mute Switch
Audio Input Level	2 to 4.35 V
Auto-Level Control	No
Frequency Response	20 Hz to 20 kHz -3 dB
Sync Method	Bluetooth
Antenna	1 x Internal, Fixed
Power Requirements	Battery
Battery Type	1 x Sennheiser Battery Pack (Included)
Approx. Battery Life	11 Hours (Sennheiser Battery Pack)
Display & Indicators	1 x LED (Mute)
Housing	Metal
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	5 to 95%
