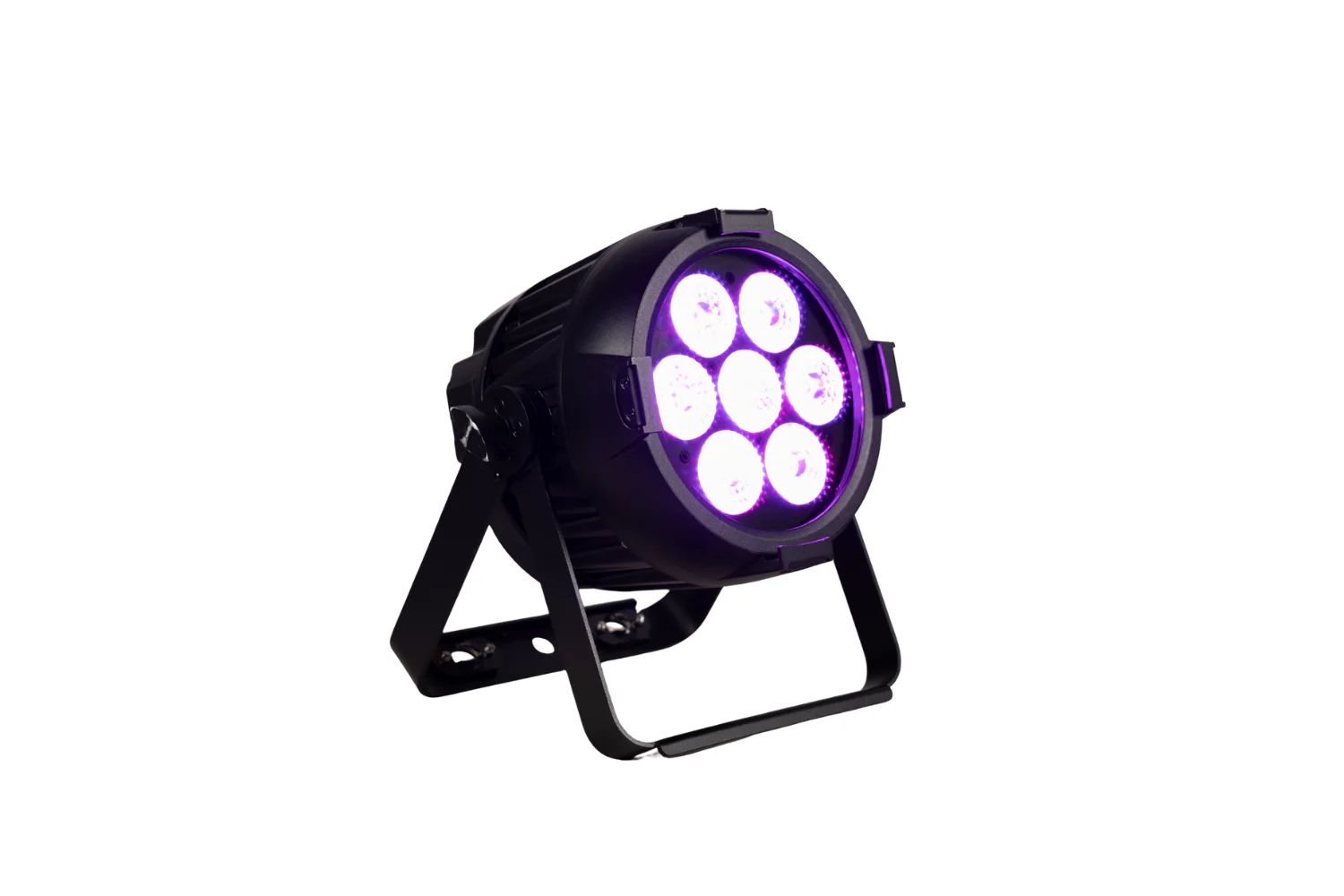

IP65 Pro Par FROST, 7 x 20W RGBWAU LED + WDMX

PARF7X20H-IP Pro PAR with Electronic Frost

Compact power meets professional flexibility. The PARF7X20H-IP is a rugged, IP65-rated LED PAR fixture built for outdoor and touring applications, delivering rich six-colour mixing and on-the-fly electronic frost control in a smaller, more portable footprint than its larger siblings.

Six-Colour Precision in a Compact Package

Powered by 7 x 20W RGBWA+UV 6-in-1 LEDs, the PARF7X20H-IP delivers vibrant, accurate colour mixing with precise control over colour temperature and saturation — from bold, punchy hues to clean, accurate whites. The standard 15° lens produces a focused, punchy output at 5,650 lux at 2.0m, well suited to accent lighting, aerial effects, and long-throw applications with optional 8°, 10° and 45° lenses available to reconfigure the throw for different rigs and venues.

Electronic Frost for Instant Versatility

Built-in electronic frost lets you soften and spread the beam via DMX, without ever touching a manual filter, widening the beam from 18° at frost 0% to 46° at full frost, giving programmers real-time creative control to shift between tight, punchy beams and smoother, blended washes within the same show.

Precise, Flexible Control

Five 16-bit dimming curves and adjustable strobe from 1–30Hz put fine control in the operator's hands, while flexible operational modes; DMX, wireless DMX, auto run, sound active, master/slave, manual colour control and static colour control- mean it's just as at home running off a console as it is standing alone. All modes are accessed through a simple 4-button LCD control panel.

Weatherproof and Ready to Rig

Housed in a rugged, die-cast aluminium IP65-rated enclosure with a matte black finish, the PARF7X20H-IP is built to perform reliably in outdoor and demanding touring environments and with fanless cooling, it runs completely silently, an important detail for close-audience or noise-sensitive settings. LEDs are rated for a 50,000-hour lifespan, keeping long-term maintenance and replacement costs low. An included Omega bracket with 1/4-turn quick locks makes rigging fast and tool-free, while True1 power in/out and 5-pin DMX in/out connections keep multi-fixture setups clean and simple to daisy-chain.

Cable-Free Flexibility

Onboard Wireless DMX eliminates the need for data cable runs, making the PARF7X20H-IP an easy fixture to deploy in outdoor spaces, temporary installs, and awkward rigging positions where cabling is impractical.

Key Features

• 7 x 20W RGBWA+UV 6-in-1 LEDs for vibrant six-colour mixing
• 15° standard lens (8°, 10°, 45° optional) — 5,650 lux @ 2.0m
• Electronic frost: 18°–46° beam spread via DMX
• 5 x 16-bit dimming curves; strobe 1–30Hz
• DMX, WDMX, auto run, sound active, master/slave, manual & static colour control modes
• 4-button LCD control panel
• Die-cast aluminium housing, matte black finish, fanless cooling
• IP65-rated for outdoor and touring use
• 50,000-hour LED lifespan
• Onboard Wireless DMX - no data cable required
• True1 and 5-pin DMX in/out connections
• Omega bracket with 1/4-turn quick locks included
• 234 x 163 x 262.5mm, 3.1kg

PARF7X20H-IP — Outdoor Pro Par with Electronic Frost and 7 x 20W RGBWA+UV LEDs
