Outdoor Wash with Electronic Frost , IP65, 20deg

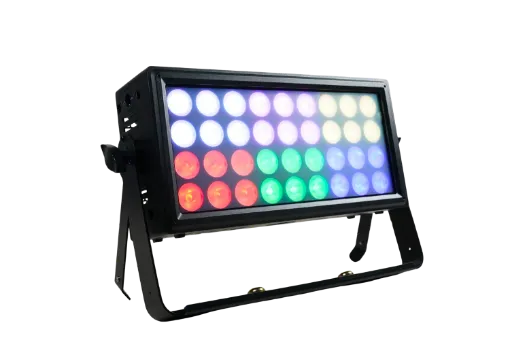

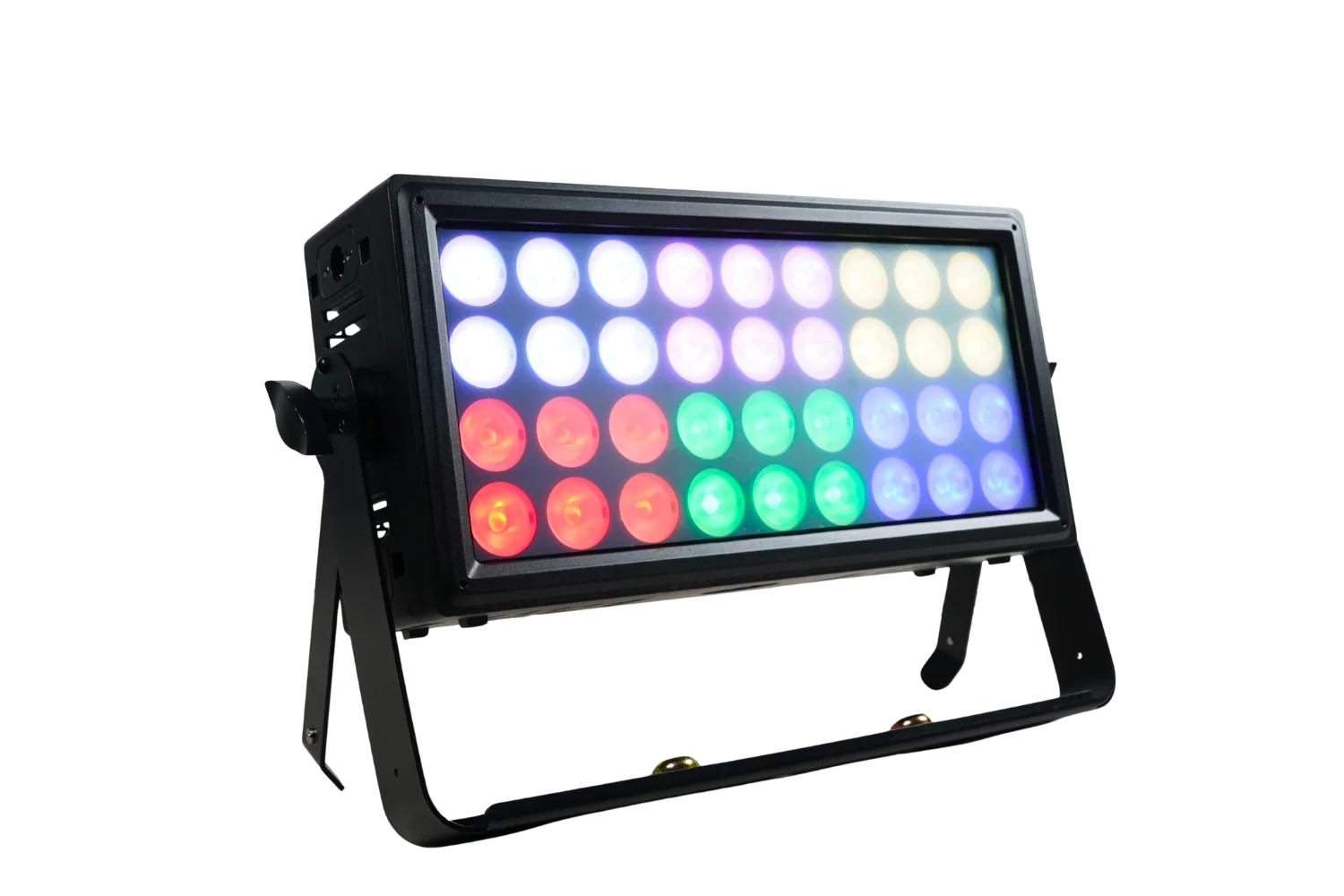

HYBRICK-WASH IP65 Wash Fixture with Electronic Frost & Interlocking Housing

Precision colour, broadcast-grade whites, and rig-ready flexibility come together in the HYBRICK-WASH — a high-output IP65 wash fixture designed for touring productions that demand both stunning colour saturation and seamless multi-fixture integration.

Vivid Colour, Flawless White

Powered by 36 x 10W RGBW+WW LEDs, the HYBRICK-WASH delivers rich, saturated colour mixing alongside dedicated cool white (6,000K) and warm white (2,500K) sources for accurate, camera-ready whites at 95+ CRI. With a 35mm lens offering a 20° beam (12° and 40° optional), output reaches an impressive 82,800 lux at 1m, making this fixture equally capable of tight, punchy looks or broad, saturated washes across large stages.

Electronic Frost & Segmented Pixel Control

Dial in beam softness from 0% to 100% transparency via onboard electronic frost — no manual filters, no downtime, just seamless DMX-controlled transitions between crisp beams and smooth, blended washes. For more intricate programming, the HYBRICK-WASH offers segmented pixel control across 6 individually controllable segments (6 LEDs each), opening the door to chases, gradients, and detailed pixel-mapped effects within a single fixture.

Broadcast-Ready, Flicker-Free

A 1,200Hz PWM rate keeps output smooth and flicker-free for camera work, while 5 x 16-bit dimming curves and a 1–25Hz strobe function give programmers precise, professional-grade control over every cue.

Built for Large-Scale Rigs

Like its HYBRICK siblings, the WASH features an interlocking housing system purpose-built for touring arrays. Double yokes allow floor-standing or horizontal hanging, with top and bottom mounting points for vertical bracket installation. Cam locks accommodate a ¼-turn Omega bracket, while 6 coffin locks and 3 tool-free lock handles allow direct fixture-to-fixture linking — horizontally or vertically — supporting up to 8 linked units (approx. 65kg) via coffin latches. One Omega bracket is included as standard.

Weatherproof and Cooled for Heavy Use

Housed in a matte black aluminium enclosure with active dual-fan cooling, the HYBRICK-WASH carries a full IP65 rating, ensuring dependable performance through demanding outdoor touring conditions and extended high-output runs.

Comprehensive Control

Operate via static, colour fade, auto program, sound-active, master/slave, or full DMX modes, with RDM and Wireless DMX support for streamlined, flexible rigging. DMX channel modes span from single-channel operation up to a full 33-channel mode for detailed segmented control, and software upgrades can be pushed directly via DMX. The 4-button LCD panel makes on-site configuration fast and simple.

Key Features

• 36 x 10W RGBW+WW LEDs with 95+ CRI
• Electronic frost: 0–100% transparency via DMX
• 6-segment pixel control for chases & detailed effects
• 82,800 lux @ 1m output, 20° beam (12°/40° optional lenses)
• IP65-rated with active dual-fan cooling
• Interlocking housing: coffin locks + tool-free handles for up to 8 linked units
• DMX, RDM & Wireless DMX control
• 5 x 16-bit dimming curves, 1–25Hz strobe
• 3-year warranty

Dimensions: 372 x 186 x 146.2mm (14.7" x 7.3" x 5.8") | Weight: 8.1kg / 17.9 lbs | Power: 100–240V AC, 400W consumption
