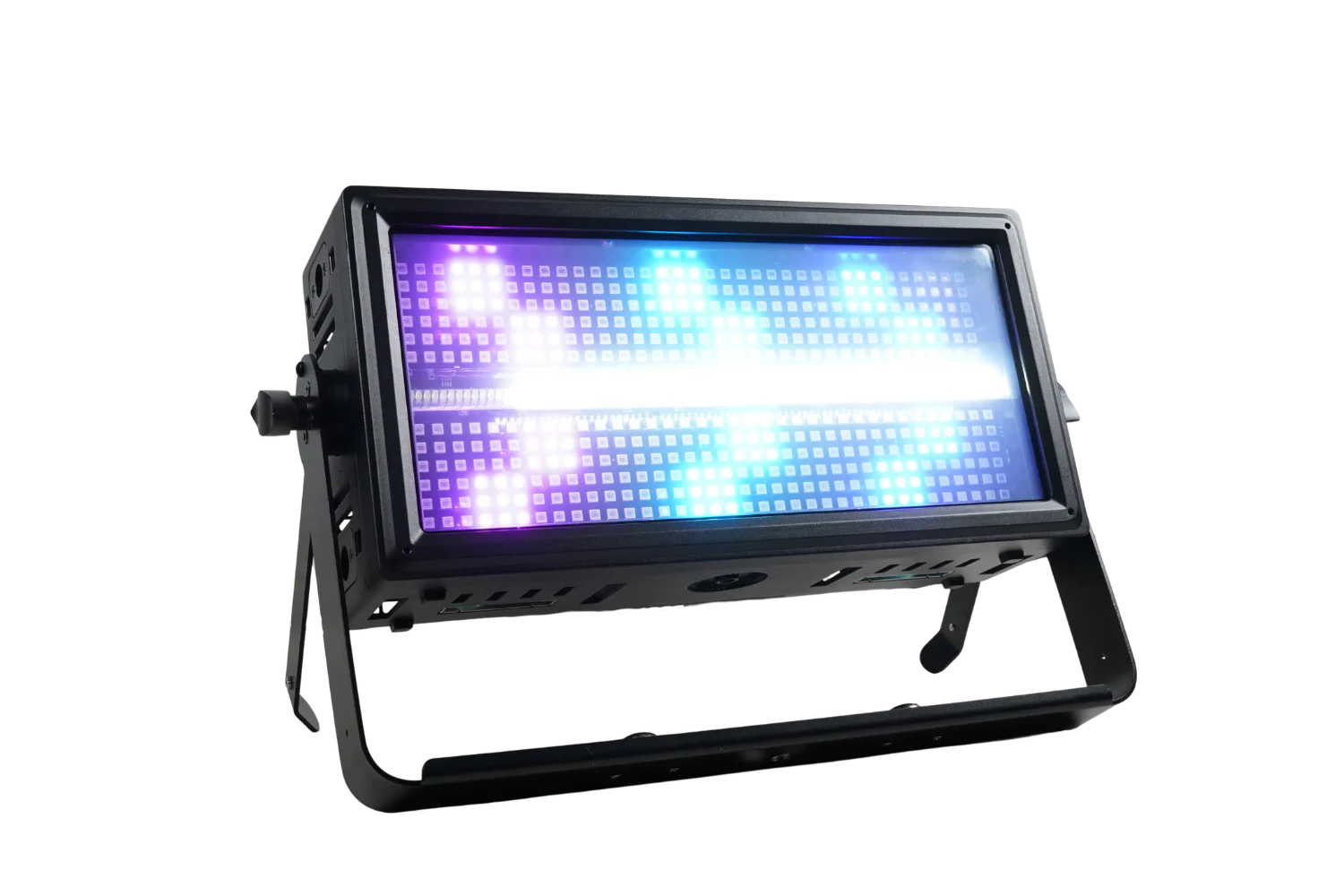

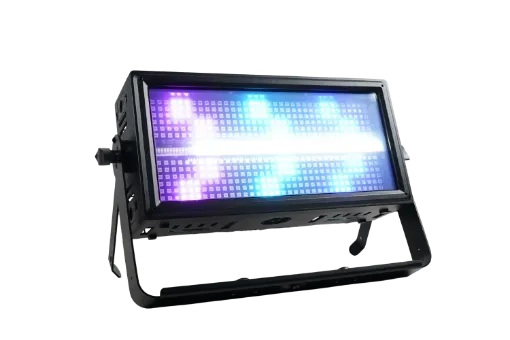

Outdoor Strobe with Electronic Frost , IP65, WDMX

HYBRICK-FX IP65 Effect Light with Electronic Frost & Interlocking Housing

The ultimate pixel-mapping effect light for large-scale rigs, the HYBRICK-FX packs an astonishing 432 individually controllable RGB LEDs alongside 84 warm white LEDs into a rugged, weatherproof housing — built to create mesmerising, high-resolution visual effects that command attention.

An Effects Powerhouse

At the heart of the HYBRICK-FX is a dual-zone RGB array 432 x 1.5W RGB LEDs split across an upper and lower zone of 24 segments each (9 LEDs per segment) delivering ultra-detailed pixel-mapped chases, waves, and colour effects with genuine precision. This is complemented by 84 x 5W warm white LEDs (3250K) arranged in 12 segments, adding punchy, high-output white beam effects at a tighter 60° angle alongside the wide 120° RGB spread.

Segmented Pixel Control for Detailed Programming

With pixel control spanning a 48-cell RGB plate plus a 12-cell white beam array, the HYBRICK-FX gives programmers exceptional creative range from smooth ambient colour washes to sharp, fast-moving chases and intricate pixel-mapped graphics. A 4,000Hz PWM rate ensures every effect renders smooth and flicker-free, even under camera.

Electronic Frost for Instant Versatility

Built-in electronic frost lets you dial beam transparency from 0% to 100% via DMX, transitioning seamlessly between crisp, defined pixel effects and soft, diffused washes all without touching a physical filter. Combined with 5 x 16-bit dimming curves and 1–25Hz strobe, the HYBRICK-FX offers refined, professional-grade control over every look.

Built for Large-Scale Touring Rigs

Sharing the HYBRICK family's signature interlocking housing, the FX features double yokes for floor-standing or horizontal hanging, plus top and bottom mounting points for vertical bracket installation. Cam locks accommodate a ¼-turn Omega bracket, while 6 coffin locks and 3 tool-free lock handles allow direct fixture-to-fixture linking horizontally or vertically supporting up to 8 linked units (approx. 65kg) via coffin latches. One Omega bracket is included as standard.

Weatherproof, Cooled for Extended Use

Housed in a matte black aluminium enclosure with active dual-fan cooling, the HYBRICK-FX is IP65-rated for confident deployment in outdoor and demanding touring environments, with thermal performance built for extended high-output show runs.

Comprehensive Control

Operate via static, colour fade, auto program, sound-active, master/slave, or full DMX modes, with RDM and Wireless DMX support for flexible, streamlined setups. An extensive range of DMX channel modes from single-channel simplicity up to a full 158-channel mode supports everything from basic operation to the most detailed segmented pixel programming. Software upgrades push directly via DMX, and the 4-button LCD panel keeps on-site configuration fast and simple.

Key Features

• 432 x 1.5W RGB LEDs (dual-zone, 48 segments) + 84 x 5W warm white LEDs
• Segmented pixel control: 48-cell RGB plate + 12-cell white beam
• Electronic frost: 0–100% transparency via DMX
• 4,000Hz PWM for smooth, camera-friendly output
• IP65-rated with active dual-fan cooling
• Interlocking housing: coffin locks + tool-free handles for up to 8 linked units
• DMX, RDM & Wireless DMX control, up to 158 channels
• 5 x 16-bit dimming curves, 1–25Hz strobe
• 3-year warranty

Dimensions: 372 x 186 x 146.2mm (14.7" x 7.3" x 5.8") | Weight: 8.1kg / 17.9 lbs | Power: 100–240V AC, 400W consumption
