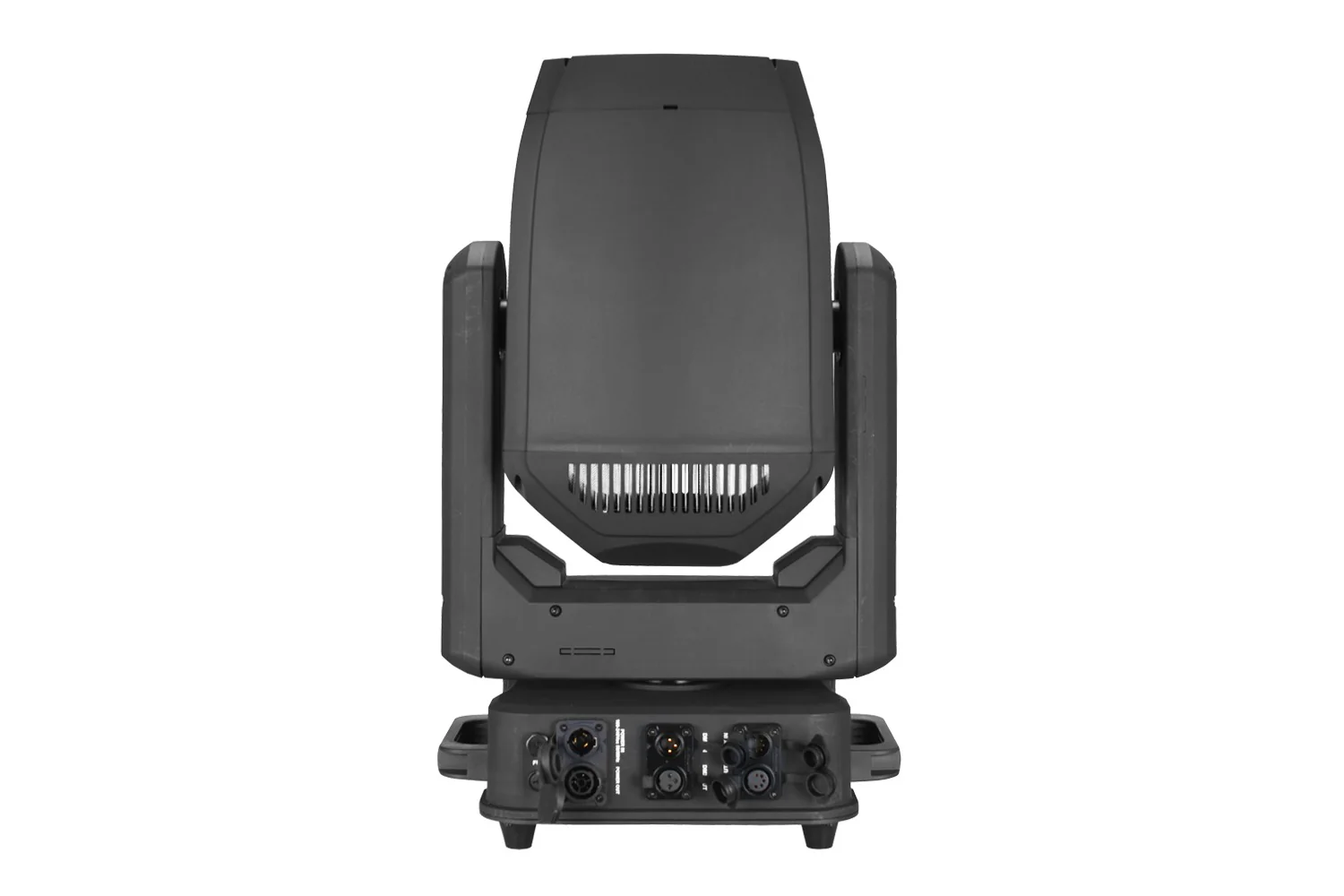

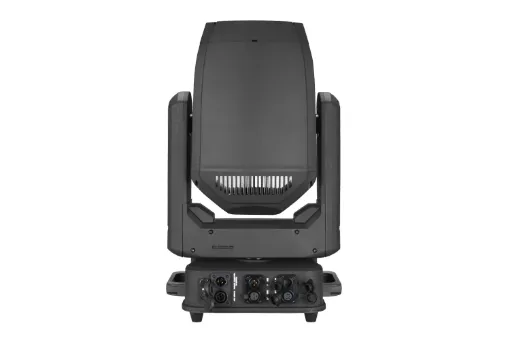

OUTBACK180B IP65 Outdoor 180W Moving Head Beam

Manufacturer: Event Lighting
1.8 degree, IP65 rated, rotating gobos and 2 prisms
SKU: OUTBACK180B
Availability: Out of Stock - can backorder and will be dispatched once in stock.
$4,398.99 incl tax
i h

OUTBACK180B - Outdoor 180W LED Moving Head Beam

Unleash a striking, razor-sharp beam of light with the OUTBACK180B - Outdoor 180W LED Moving Head Beam. Engineered for demanding outdoor environments, this IP65-rated fixture delivers exceptional intensity and precise control, making it the ideal choice for concerts, architectural highlights, large-scale events, and any application where a powerful, cutting-edge beam is required.

Key Features:

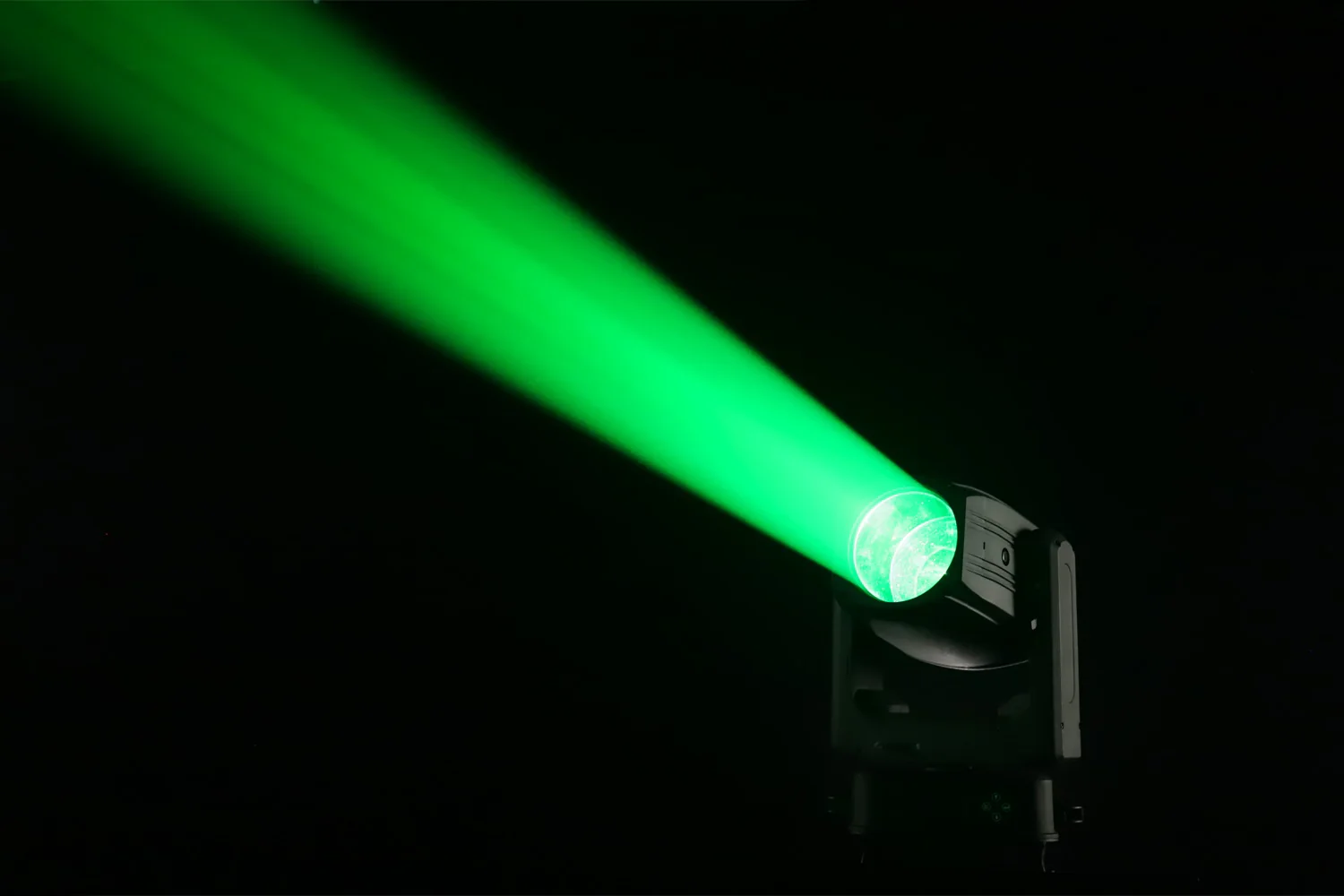

  • Blazing Bright Beam: Powered by a formidable 180W White LED, the OUTBACK180B projects an incredibly tight 1.8° beam, achieving an astounding output of 191,301 lux at 5 meters. Cut through the darkest nights with unparalleled clarity.
  • Vibrant Color Palette: Craft captivating visual spectacles with dual color wheels. The first offers 14 vibrant colors plus open, while the second provides 8 additional colors plus open, allowing for expansive and dynamic color mixing.

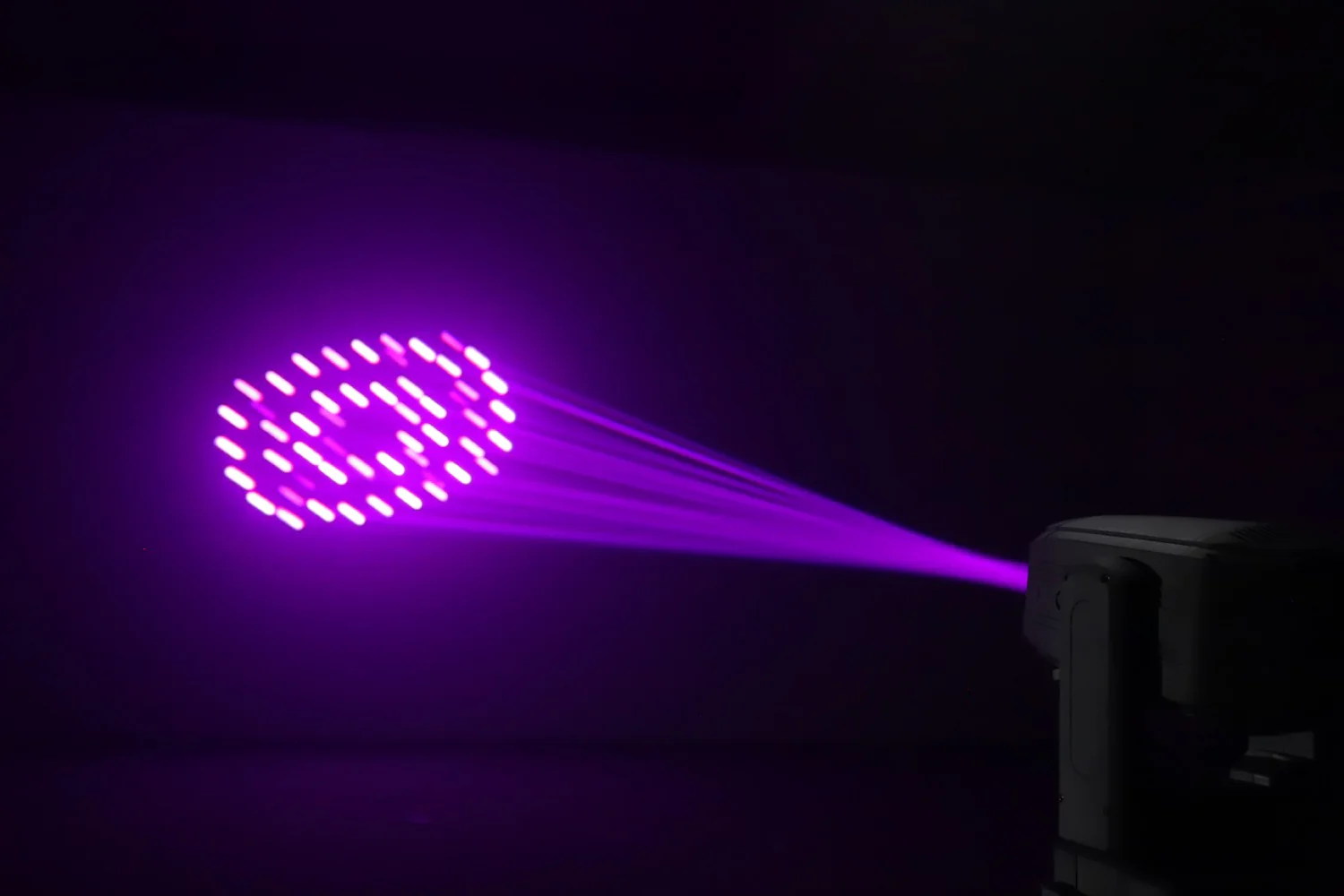

  • Dynamic Gobo Effects: Project crisp and intricate patterns with a dedicated fixed gobo wheel (10 + open) and a rotating gobo wheel (4 + open). Both wheels feature gobo shaking and indexing for added creative possibilities.
  • Dual Prisms & Frost: Transform your beam with two independent prisms – a 24-facet circular prism (with optional rainbow effect) and a 5-facet linear prism with indexing. Overlap both prisms for unique visual textures. A dedicated frost effect softens the beam for wash-like transitions.
  • Fluid & Precise Movement: With 16-bit resolution, a swift 540° pan, and 270° tilt, the OUTBACK180B offers exceptionally smooth and accurate movement, complete with auto-repositioning to ensure your effects always hit their mark.
  • Rugged Outdoor Durability: Constructed from robust ABS & Steel with a sleek matte black finish and an IP65 rating, this fixture is fully protected against dust and powerful water jets, ensuring reliable performance in any weather. High-temperature automatic protection provides added safety.
  • Flexible Control: Compatible with DMX512 and RDM protocols, and offering optional wireless DMX, the OUTBACK180B provides versatile control options via its 20 or 23 DMX channels. An intuitive TFT control panel makes setup a breeze.
  • Long-Life Performance: Benefit from a long-lasting LED lifespan of over 20,000 hours, ensuring consistent and dependable operation with minimal maintenance.



Specifications:

Photometrics

  • Light Source: 180W LED White
  • Beam Angle: : : 1.8°
  • Output: 191,301 lux @ 5m at 1.8°
  • CCT: 7,000K
  • CRI: >70
  • Led lifespan: > 20,000 hours

Colour

  • 14 Colour + Open (first wheel)
  • 8 Colour + Open (second wheel)

Gobos

  • Fixed: 10 + Open
  • Rotating: 4 + Open
  • Gobo Shaking: Yes
  • Gobo Indexing: Yes

Effects

  • Dimming: 0~100%
  • Strobe: 1 - 25 Hz
  • Focus: Motorised
  • Prism(1): 24-Facet circular prism, (Optional Rainbow Effect)
  • Prism(2): 5-Facet linear prism, indexing
  • Prism Overlap: Yes
  • Frost: Yes

Movement

  • 16 bit resolution
  • Auto repositioning
  • Pan: 540°
  • Tilt: 270°

Power

  • Max power consumption: 260W
  • Input Voltage: 100~240V AC, 50/60Hz
  • Connection: True1 in/out

Control

  • Control Protocol: DMX512, RDM
  • Optional Wireless
  • DMX Channels: 20 / 23
  • Interface: 3-pin/5-pin XLR (in/out)
  • Display: TFT control panel

Housing

  • Materials: ABS & Steel, matte black finish
  • Protection: High temperature automatic protection
  • IP rating: IP65
  • Dimensions: 338 x 240 x 555mm
  • Net Weight: 16.5 kg



Download Product Datasheet

Download user manual
