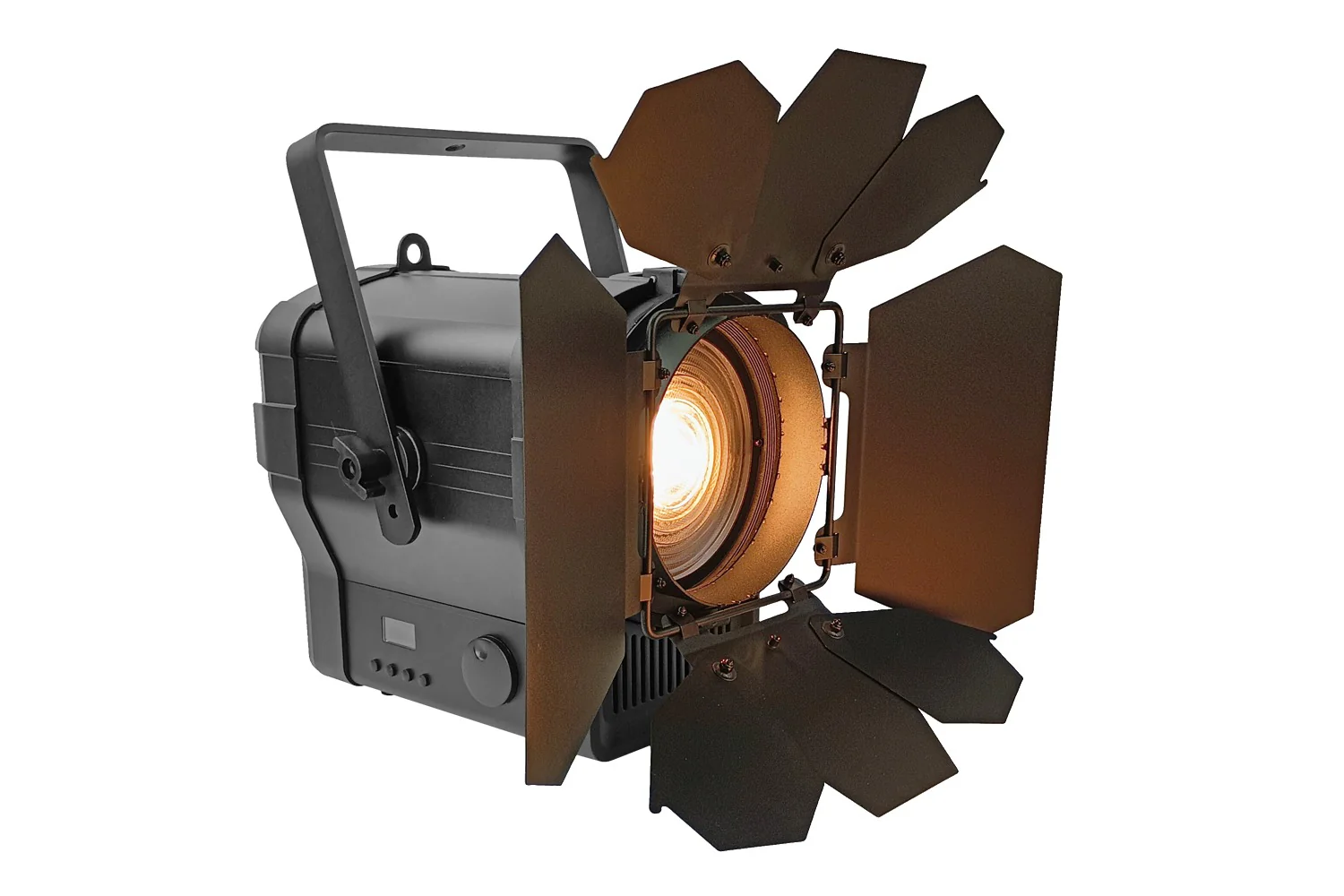

Opera Compact Fresnel with 200W Variable White COB

OPERAC200VWF Compact Fresnel with 200W COB Variable White LED

Studio-quality light in a compact, portable package. The OPERAC200VWF is a professional Fresnel fixture built for film, broadcast, and theatrical applications where colour accuracy and ease of use are essential. With a powerful 200W COB variable white engine and continuously adjustable colour temperature, it's designed to blend seamlessly into any lighting setup.

True Colour Accuracy

At its core is a 200W COB LED engine delivering a smooth, continuously adjustable colour temperature range of 3200K–5600K at a superb 95 CRI ensuring skin tones and set colours render true to life. The single-channel mode makes on-set adjustment effortless: dial in colour temperature to match existing fixtures and control brightness with one simple dimmer channel, no complex programming required.

Classic Fresnel Optics, Modern Control

A glass lens set paired with a 120mm Fresnel lens produces the soft, even beam edge Fresnel fixtures are known for, with manual zoom adjustable from a tight 23° to a broad 62° giving operators fast, tactile control over beam spread without leaving the fixture. 16-bit dimming with 3 selectable dimmer curves and adjustable dimmer speed provide refined, camera-friendly fades.

Built for Film & Broadcast Workflows

A variable PWM rate of 1,000Hz–16,000Hz keeps output flicker-free across a wide range of camera frame rates and shutter angles, making the OPERAC200VWF a dependable choice for demanding broadcast and cinema environments. Silent fan cooling with an intelligent automatic temperature regulation system keeps the fixture running quietly — critical for sound-sensitive sets and live recording.

Practical, Ready to Shoot

The OPERAC200VWF ships complete with an 8-leaf barn door for precise beam shaping and light control, plus a gel frame for colour correction or effects gels — everything needed to get to work straight out of the box. ±90° tilt adjustment offers flexible positioning on stands, rigs, or grip equipment.

Flexible Control

Operate via DMX, RDM, or manual control, with DMX channel modes ranging from simple 1-channel operation to detailed 9-channel control. The 4-button TFT-LCD control panel offers clear, intuitive on-fixture configuration, while True1 power and 5-pin DMX in/out connections simplify daisy-chaining across multiple units.

Key Features

• 200W COB LED with 95 CRI, 3200K–5600K variable white
• Manual Fresnel zoom, 23°–62°
• 1-channel mode for simple colour temp + dimmer control
• 1,000Hz–16,000Hz adjustable PWM for broadcast/film use
• Silent fan cooling with intelligent thermal regulation
• 8-leaf barn door and gel frame included
• ±90° tilt adjustment
• DMX, RDM & manual operation modes

Dimensions: 328 x 411 x 278mm (12.9" x 16.2" x 10.9") | Weight: 8.2kg / 18.1 lbs | Power: 100–240V AC, 200W | IP Rating: IP20
