VOIP Gateway for IP Speakers, PoE

The Netbell VOIP Gateway serves as the bridge to integrate any VOIP phone system with your Netbell IP speakers.

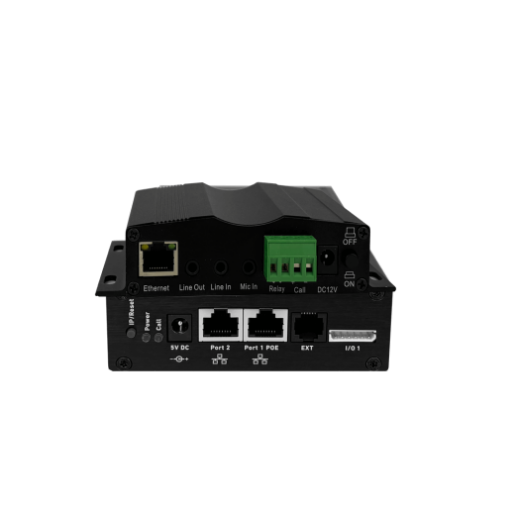

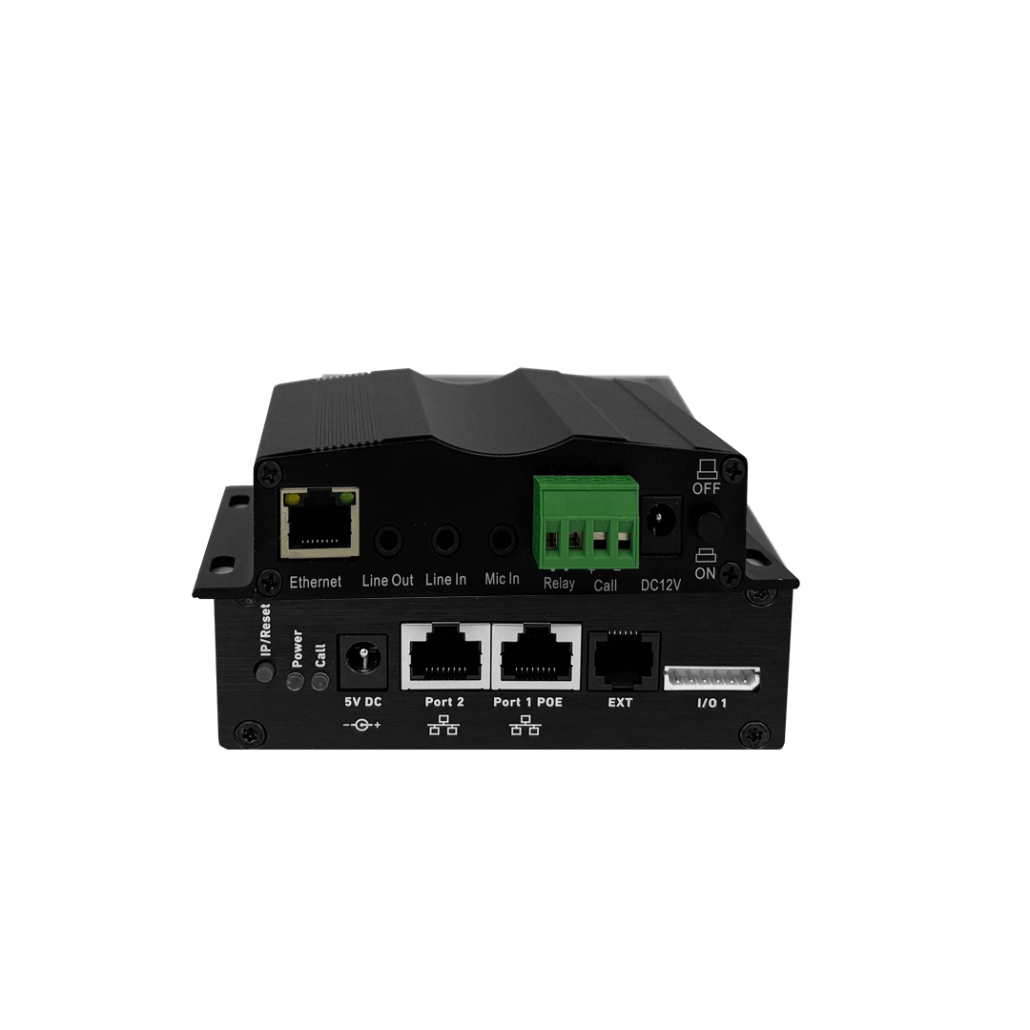

The Netbell VOIP system includes two components: the Netbell-AU-711 broadcast terminal (Part #01-910-00143) and the SIP Bridge (Part #01-910-00149). To integrate the gateway with your PA system is simple, you only need to connect the bridge's Line-Out to the Line-in of the audio broadcast terminal. Once you connect the bridge to your network, it will get an IP address from your router automatically. With the IP address and the MAC address, your can register the bridge to your VOIP phone system and assign an extension.

To use this VOIP gateway to build a facility-wide mass communication system, you can pick one or many speakers that fit your needs

Important Requirements

To achieve the best audio quality for your IP paging system, we recommend building a dedicated VLAN for this system with network equipment compatible with multicast protocol. Netbell IP paging devices support PoE/PoE+, and a properly configured network infrastructure will ensure a smooth installation.

• The speakers and the PC running the NACT desktop app must be on the same LAN
• Network and Switch Requirements:
  • Power over Ethernet (PoE/PoE+) Switch Ports
  • Minimum CAT5 cable with maximum of 100 meters from the device to switch
  • Network switch capacity to handle power loads for all devices
  • Router: Must support IGMP (Internet Group Management Protocol) and PIM (Protocol Independent Multicast)
  • Switch: Must support IGMP snooping
