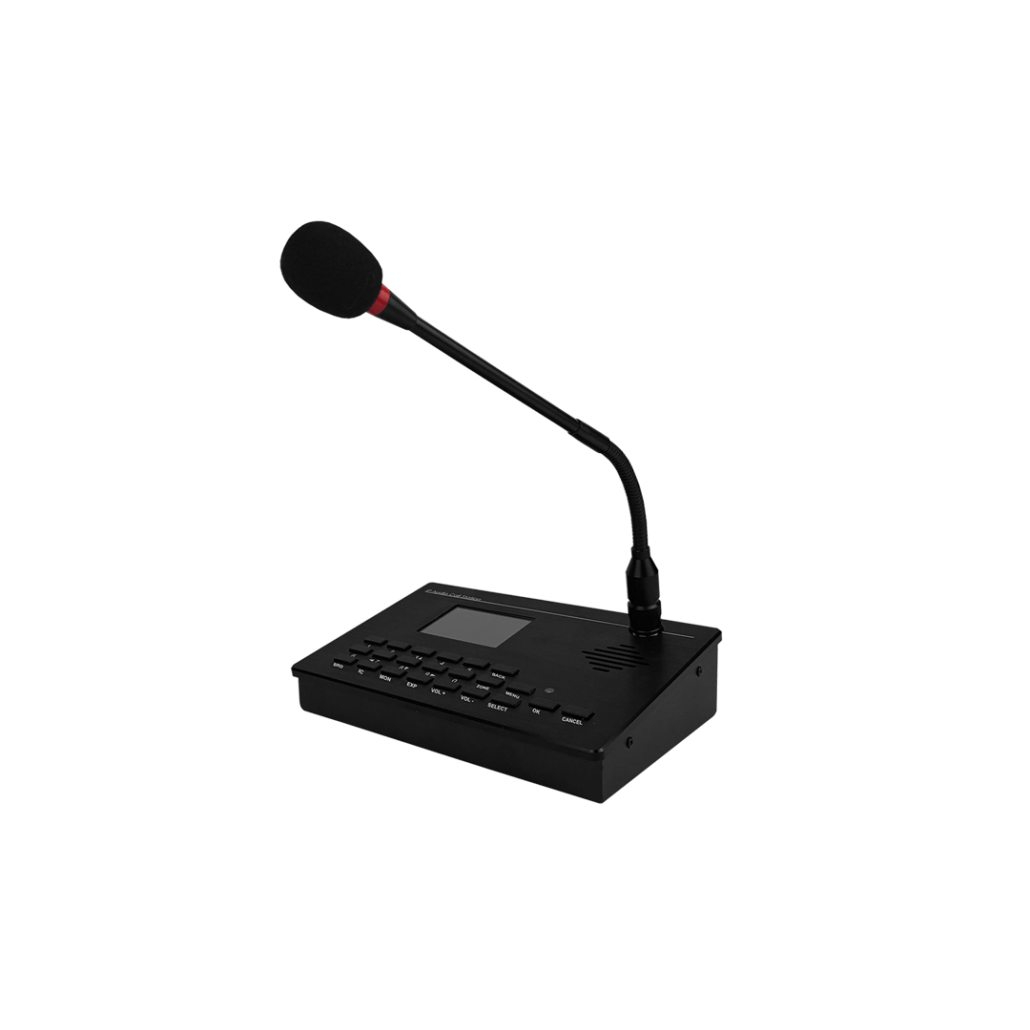

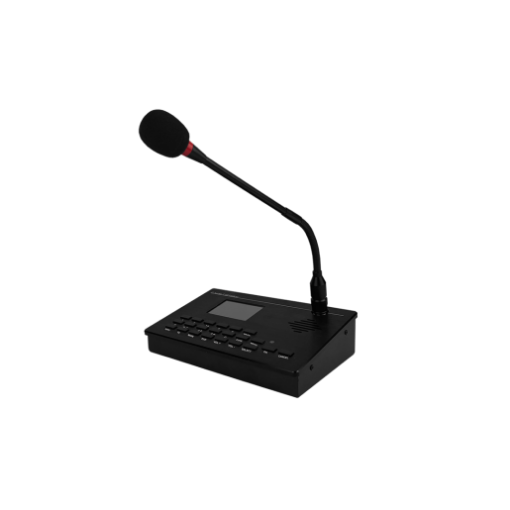

Netbell MIC-813 IP Call Station with Gooseneck Mic

IP Desk Paging Microphone

Transform your facility's communication with this robust IP call station. This IP call station with gooseneck microphone comes with a high-performance microphone, built-in 2W audio power amplifier and matching speakers, 1 line output, 22 buttons, supports broadcast, intercom, unicast, full broadcast, etc., it can be used to page up to 8 zones or 255 endpoints. You can install multiple call station on the network to make live announcement facility-wide.

As every Linortek IP speaker and endpoint has a unique network IP address and ID, allowing you to communicate exactly where needed. When using this intercom terminal with your IP speakers, you can make it to talk to all zones, target specific areas, or reach individual speakers, our flexible system lets you deliver the right message to the right audience.

To use this IP call station to build a facility-wide two-way communication system, you can pick one or more speakers that fit your needs from the featured product below to build your custom paging system, or an IP intercom terminal for 2-way communication.

Key Features

• High-reliability audio communication system
• 10/100M Ethernet interface for seamless network integration
• Built-in 2W speaker and microphone, supports hands-free operation and broadcast reception
• Direct speaker output: Built-in 30W amplifier allows direct connection of 8Ω speakers without requiring an external amplifier
• Can receive network broadcasts, paging, and intercom communications
• Flexible communication modes: point-to-point or point-to-multi-point

Important Requirements

To achieve the best audio quality for your IP paging system, we recommend building a dedicated VLAN for this system with network equipment compatible with multicast protocol. Netbell IP paging devices support PoE/PoE+, and a properly configured network infrastructure will ensure a smooth installation.

• The speakers and the PC running the NACT desktop app must be on the same LAN
• Network and Switch Requirements:
  • Power over Ethernet (PoE/PoE+) Switch Ports
  • Minimum CAT5 cable with maximum of 100 meters from the device to switch
  • Network switch capacity to handle power loads for all devices
  • Router: Must support IGMP (Internet Group Management Protocol) and PIM (Protocol Independent Multicast)
  • Switch: Must support IGMP snooping
