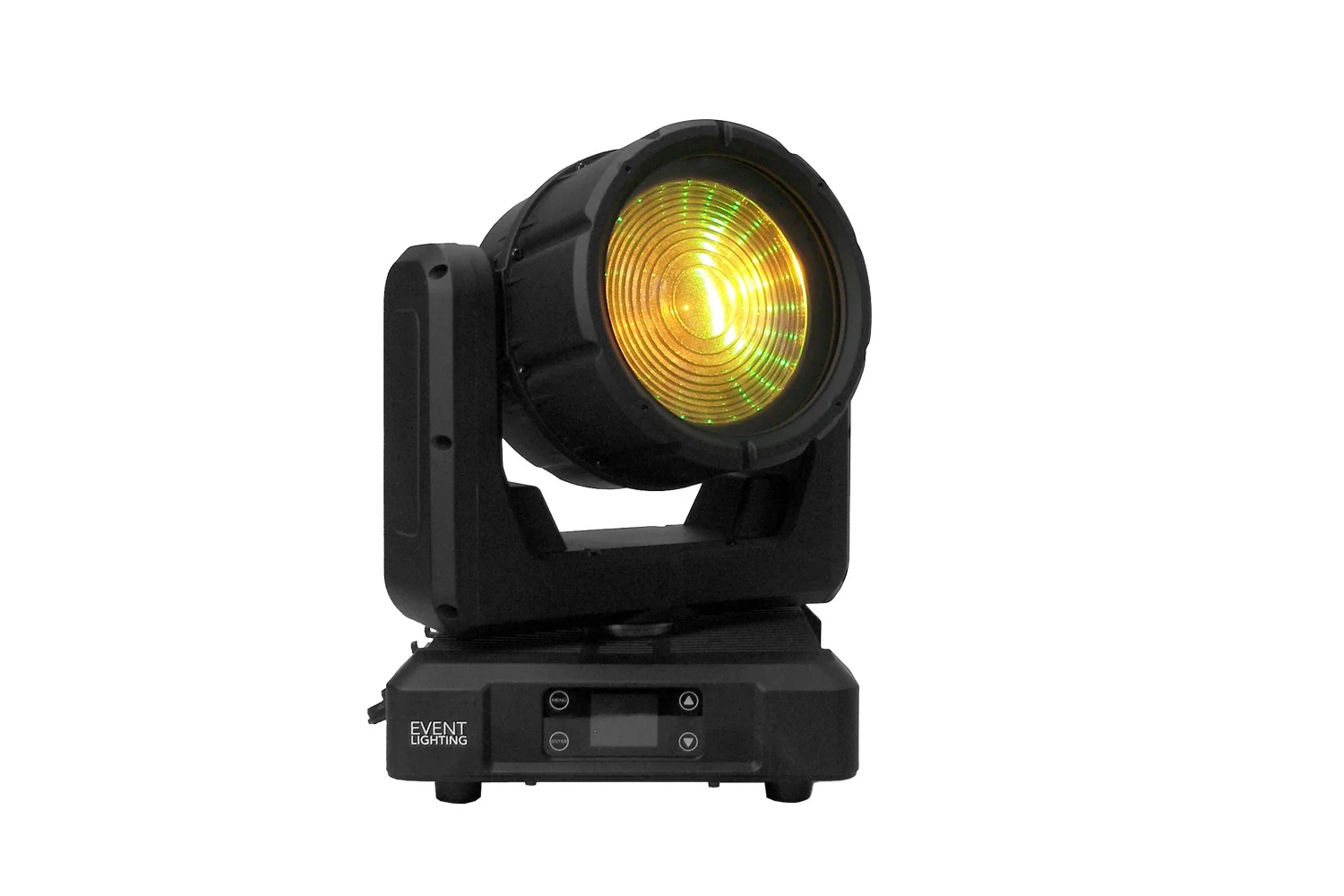

IP65 Moving Head Fresnel Zoom Wash RGBL

DELUGEM120WFX  Outdoor IP65 Wash & Aura Effect Fixture

Weatherproof, powerful, and built for impact the DELUGEM120WFX is a true outdoor moving fixture designed to deliver dazzling light shows rain or shine, or equally indoor lighting any stage. Combining smooth wash output with eye-catching pixel effects, this compact powerhouse is engineered for productions, indoor and outdoor, that demand both reliability and visual punch. The Lime LED addition fills in the spectral gaps  between Red, Green and Blue, and significantly boosts overall brightness output, improves the Color Rendering Index (CRI) for high-quality white light.

Dual Light Engine, Double the Impact

At its core sits a single 120W RGBL light engine paired with a large 140mm Fresnel lens, producing a beautiful, even wash across a wide 3.8°–38° motorised zoom range. Surrounding this is a ring of 48 x 1W RGBWW Aura LEDs, delivering a dazzling eye-candy effect and enabling intricate pixel mapping. Together, the smooth Fresnel wash and captivating Aura ring make the DELUGEM120WFX an essential tool for creating layered, impactful visuals — from soft ambient washes to sharp, punchy chases.

Serious Output, Precision Control

With an output of 93,750 lux at 2m (3.8° zoom) and fully flicker-free operation, the DELUGEM120WFX is built for demanding outdoor environments and broadcast-ready performance. 16-bit dimming delivers ultra-smooth fades, while motorised zoom and generous 540° pan / 230° tilt movement give programmers extensive creative range.

Built to Withstand the Elements

Housed in a rugged ABS and steel enclosure with a matte black finish, the DELUGEM120WFX carries a full IP65 rating — engineered to perform reliably through wind, rain, and dust without compromise. Despite its outdoor-grade durability, it remains compact and portable at just 7kg, making it easy to deploy and strike for touring and rental applications.

Flexible, Modern Connectivity

Control via 5-pin DMX, ArtNet, or sACN, with RJ45 in/out for streamlined network-based rigs alongside traditional DMX daisy-chaining. Multiple channel modes (18 to 225) support everything from simple operation to full pixel-mapped programming, and an integrated LCD control panel makes on-site setup fast and straightforward. Auto, sound-active, and master/slave modes round out a fixture ready for both programmed shows and stand-alone use.

Key Features

• Dual light engine: 120W RGBL wash + 48 x 1W RGBWW Aura pixel ring
• 93,750 lux @ 2m output, 3.8°–38° motorised zoom
• IP65-rated for full outdoor use
• 540° pan / 230° tilt movement
• DMX, ArtNet & sACN control via 5-pin DMX and RJ45
• 16-bit dimming, flicker-free operation
• Compact, portable design at 7kg
• 50,000-hour LED lifespan

Dimensions: 282 x 250 x 365mm (11.1" x 9.8" x 14.4") | Weight: 7kg / 15.4 lbs | Power: 100–240V AC, 180W max consumption
