ChamSys GeNetix GN4IP 4 Port IP Rated Node

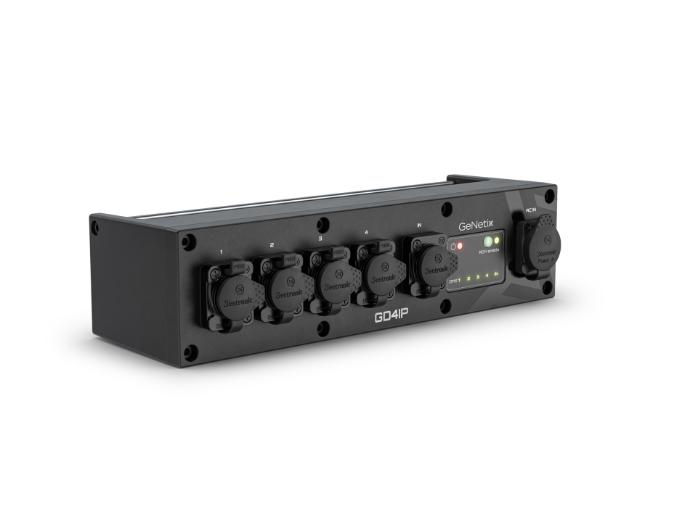

GeNetix GD4IP is a compact IP65-rated 4-port DMX Splitter that comes with multiple rigging options for easily mounting in your rig. Featuring 1 DMX Input to 4 DMX Outputs and an ‘RDM Disable button’ to strip out RDM data and retime the DMX signal, this ruggedly built device comes with Seetronic IP65 connectors and a PowerCon True1 Mains Input connector.

FEATURES

• 4 Port RDM E1.20 Compliant DMX Splitter
• IP65 Rated
• PowerCon True1 Top Mains Input
• M12 Threaded Insert for Clamp Mounting
• Built in Rail for secondary Safety bond when rigged

SPECIFICATIONS

Hardware Specifications:

• 5 Pin DMX Output Ports: 4
• 5 Pin DMX Input Ports: 1
• RDM Enable/Disable Option: Yes
• Mains Input: PowerCon True1 Top
• IP65 Rated: Yes
• Port Status LEDs: Yes
• M12 Clamp Fixing: Yes
• Safety Bond Fixing Rail: Yes

Software Specifications:

• RDM E1.20 Compliant: Yes

Included Accessories:

• Neutrik powerCON TRUE1 Power Cable: 1

Weights and Dimensions:

• Width: 274mm (10.81 inches)
• Depth: 76mm (3,0 inches)
• Height: 68mm (2.68 inches)
• Weight: 1.40 KG (3.09 lb)
