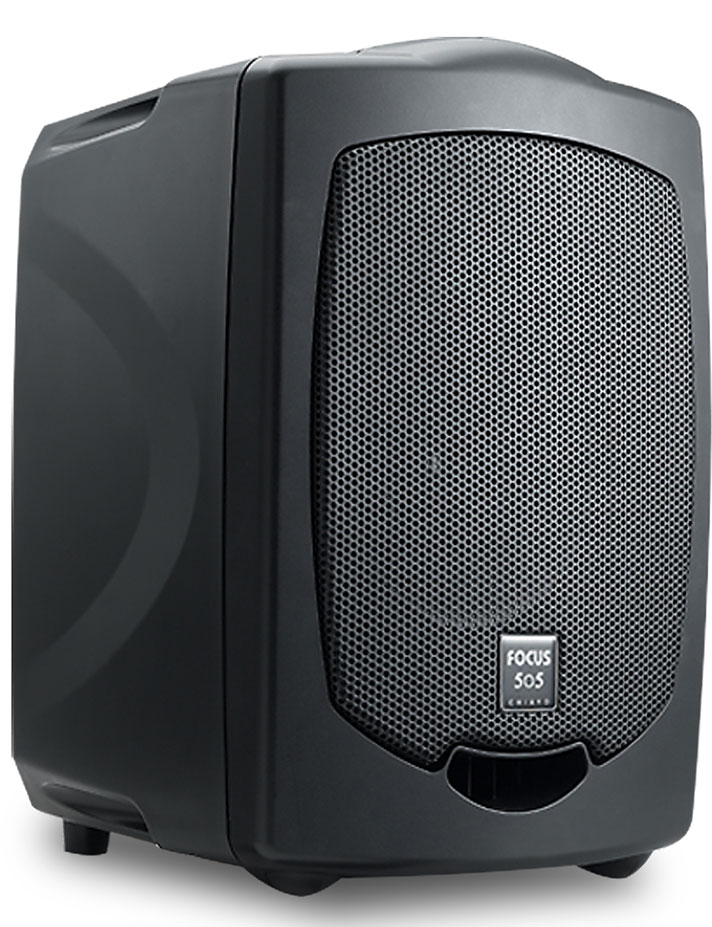

Focus 505 Portable Powered Speaker, 30w

Manufacturer: Chiayo

1 review(s) | Add your review

Active Slave Speaker, Portable PA, Rechargeable Battery

An active 30w (50w) speaker with aux input
Produces high-quality sound with hi-fi characteristics
Operates via mains or built-in rechargeable batteries
Efficient Class D amplifier for 30W RMS output
Commonly used in conference centers or churches
Also used in outdoor venues or studios

SKU: FOCUS505PA

Availability: In stock

$493.35 incl tax

Qty:

i h

Overview
Specs
Reviews
Contact Us

Active 50w Powered Focus 505 Speaker with one Aux input. Operates via mains and/or built-in rechargeable batteries. This is a portable powered extension speaker to match the Focus portable sound systems, but also functions as a stand-alone powered speaker for anything else with a line level output (music, PC, monitor, AV system, TV etc). The sound quality is superb with hi-fi characteristics 50Hz - 20kHz and with the very low distortion figures we can confidently say these are the best sounding portable PA systems in their class.

It does not have a speaker output to power another passive speaker.

General Features

High efficiency Class D amplifier produces 30W RMS audio output (maximum music output 50W)
All-In-One! Easy to operate in both indoors and outdoors.
Rechargeable Lead-Acid battery eliminates all cables so you can take it anywhere!
Smart charging circuit with LED indicator.
Speaker system: 6 1/2" full range.
Audio inputs: Aux in
Audio outputs: N/A
Tripod stand mountable with ST-40/Wall mountable with SR-40.
Optional carrying bag (SB-21).
Portable amplifier: PA-505R

It's a powered speaker with battery and power adaptor. Can go on a stand, in a bag, and links to the other members of the Focus family or any other line level/Aux sound source. Perfect when you need battery powered sound monitoring out in the field. If you want a wireless microphone too, or CD player then look at the Focus 505U or UCD models instead.

Specifications

Model	Focus 505
Output power	50W, 30W(RMS) 4Ω load (class-D)
Speaker system	6 ½" full range
Audio input	Aux in (6.3mm Jack)
Audio output	No
T.H.D.	< 0.5%
Freq. response	50Hz-20KHz ± 3dB
Antenna
Power supply	100-240V AC / 15V DC, 4.3A
Battery type	Lead-Acid
Battery spec	12V, 2.9A
Battery Q'ty	1
Operating time	5-6 hrs in music, 10-12 hrs in speech
Charging time	about 4 hrs
Dimension (mm)	313(H) x 220(W) x 215(D)
Weight (kg)	4.8

Patent	Taiwan, China, USA, Germany
Approval	CE, RoHS, FCC, ICID
