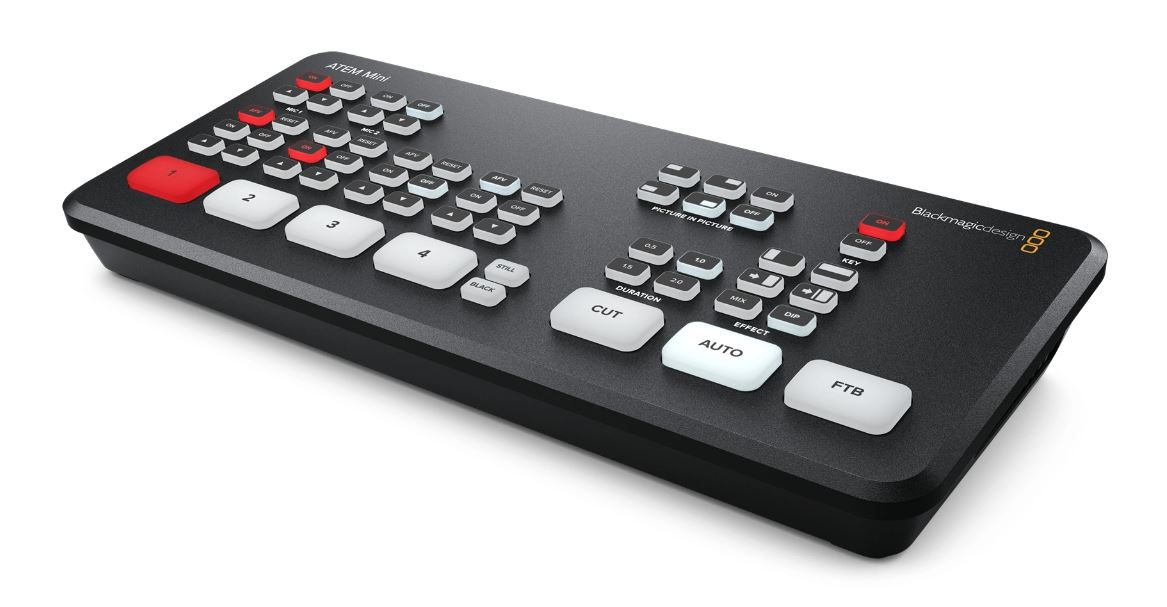

Blackmagic ATEM Mini Switcher

4-Channel Live Stream HDMI Switcher
  • Connect up to 4 independent cameras for versatile live streaming.
  • Supports popular software like OBS, Skype, and Zoom for easy use.
  • Includes 4 HDMI inputs, USB webcam output, and HDMI output options.
  • Features Fairlight audio mixer with EQ and dynamics for enhanced sound.
  • Offers picture-in-picture, transition effects, and green screen capabilities.
SKU: ATEM-MINI
Availability: In stock
$631.35 incl tax
i h

ATEM Mini live stream video switcher allows you to stream live interviews, theatre, music videos, education and training, business presentations, sport and esport competitions, investor updates etc...

Connect up to 4 independent cameras, and choose any software you like, such as Open Broadcaster for live streaming, or Skype for Powerpoint presentations.

Fast to set up and easy to use. - it works with software and platforms such as Open Broadcaster, XSplit Broadcaster, YouTube Live, Facebook Live, Skype, Zoom, Twitch, Periscope, Livestream, Wirecast and more.

It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.

Atem connects to your PC/MAC and looks like a single webcam meaning you can plug in and instantly get working with any video software. The software is tricked into thinking the ATEM Mini is a common webcam, but it's really a live production switcher.

Product Features
  • 4-Channel Live Stream HDMI Switcher
  • Input/Output up to 1080p60 10-Bit 4:2:2
  • 2-Channel Digital Audio Mixer
  • HDMI Output, Ethernet ATEM Control
  • Media Player, Computer Input Support

Specifications

Input/Output
Inputs4 x HDMI Type A
2 x 3.5 mm Stereo Analogue Audio
1 x RJ45 Ethernet
Outputs1 x HDMI
1 x USB Type-C (Computer/Webcam)
Video & Audio
Video Input FormatsHDMI Video:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50

HDMI Resolutions for Computers:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
Video Output Formats1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Video Sampling4:2:2 YUV
Colour Precision10-Bit
Colour SpaceRec. 709
Colour Space ConversionHardware-Based, Real Time
Embedded Audio2-Channel Input and Output
Audio Mixer6-Input, 2-Channel
Media Player1 x Player with Fill and Key
Still Image Capacity20
Image Format SupportPNG, TGA, BMP, GIF, JPEG, TIFF
General
Keyers1 x Upstream
1 x Downstream
1 x Advanced Chroma
2 x Linear/Luma
1 x Transition (DVE Only)
LayersUp to 4
Generators1 x Pattern
2 x Colour
DVE1 x Border and Drop Shadow
Monitor Resolution1366 x 768 or Greater
Number of Windows10
Operating System SupportApple macOS 10.13, 10.14, or Later
Windows 10
Power Input1 x Barrel
Voltage12 V
Power Draw18 W
Operating Temperature41 to 104°F / 5 to 40°C
Storage Temperature14 to 140°F / -10 to 60°
Relative Humidity0 to 90% Non-Condensing
Dimensions9.4 x 4.1 x 1.4" / 23.8 x 10.4 x 3.6 cm
Weight19.4 oz / 550 g
