In Out Expander with DX Sockets 96kHz (48/16)

Manufacturer: Allen & Heath
96Khz digital stagebox / rack module
SKU: GX4816
Availability: Out of Stock - can backorder and will be dispatched once in stock.
$7,790.00 incl tax
i h

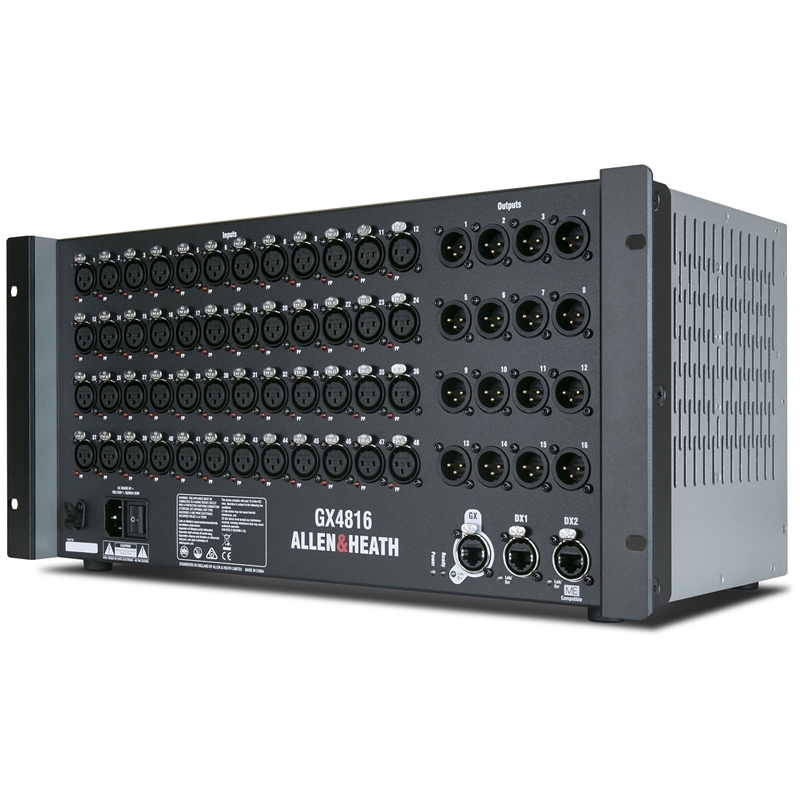

GX4816 Audio Expander

The Allen & Heath GX4816 48x16 Digital Stage Box for SQ & DLive is a networkable audio expander which adds 48 inputs with professional-grade microphone preamps and 16 XLR line outputs to your system, all simultaneously available at 96kHz resolution.  It also features two DX expansion ports, so you can connect up to 32 x 16 more channels of top-notch digital I/O to your Allen & Heath mixing console.

Digital expansion made easy

Don't you love it when you just plug something in and it works — no mess, no hassle, just hook it up and go? That's what the GX4816 offers you. As a part of your modular dLive or SQ mixer system, this I/O expander lets you get exactly the connections you need, all via sturdy locking EtherCon ports and standard Cat 5e cables. SQ systems can handle a pair of GX4816s, C Class dLive systems can take three, and you can connect five of them to an S Class rig. Add a DX32 or two DX168 or DX164-W expanders, and you can really rack up the channel count.

A&H GX4816 Audio Expander Features

  • A 5U, 48-input/16-output, 96kHz digital I/O expansion for A&H dLive and SQ mixing consoles
  • Each input features a remote-controllable microphone preamp with individual phantom power LEDs
  • Two DX expansion ports let you hook up 1 DX32 or up to 2 DX168/ DX164-W expanders
  • Connect up to 2 GX4816s to an SQ system, 3 to a dLive C Class system, or 5 to a dLive S Class system
  • Plug-and-play connection via standard Cat 5e cables (EtherCon ports) with automatic IP addressing
