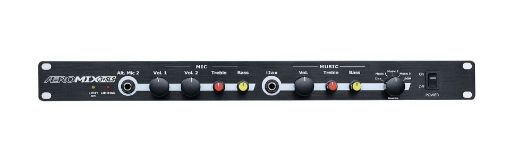

Aeromix Stereo Audio Mixer (Streaming) 3+5LS Mic/Line

Aeromix AMX 3+5LS – Professional Aerobics Studio Audio Mixer

The Aeromix AMX 3+5LS is a top-tier voice-over-music stereo audio mixer engineered specifically for fitness studios, gyms, and group exercise environments where clarity, control, and safety are critical. Designed to manage multiple instructors and music sources simultaneously, it delivers reliable, professional-grade audio performance in high-energy studio settings.

The mixer provides three microphone inputs via combination TRS/XLR sockets, allowing seamless connection of wired or wireless microphone systems with reduced noise and interference. These balanced inputs make it ideal for visiting instructors using their own equipment - simply plug in, power up, and begin. Five stereo music inputs are supported, including a front-panel iJax input for quick phone or mobile device connection, three rear RCA inputs, and a dedicated BGM input for background music or virtual class playback. The BGM input is governed by a recessed rear-mounted control, preventing unsupervised volume increases.

For sound safety and compliance, the AMX 3+5LS incorporates an adjustable Audio Slap limiting circuit that applies a –15 dB reduction to music levels when a preset threshold is exceeded. A front-panel red LED provides a clear visual indication of overload, while a rear “ceiling” control allows precise setting of the limiting point.
An additional rear-mounted master volume control enables technicians to set a maximum system level, effectively preventing unauthorised adjustments.

Pair it with the Fitness Audio DX6 Digital Wireless system, and two instructors can work together seamlessly. The Aeromix AMX 3+5LS is rack-mountable, built with heavy-duty rust-resistant controls, and powered by a 24V power supply for ultra-quiet operation—making it the ultimate fitness studio audio solution.

Combi Mic Inputs: The latest version also features Combination Mic Inputs. These Combi mic sockets accept a 6.35mm Jack plug (unbalanced or balanced) in the centre of the socket. They will also accept a balanced line XLR cable from the Mic Out socket found on the majority of quality wireless mic receivers. Balanced line inputs are less susceptible to noise and interference. Visiting “special event” instructors with their own mic systems can walk up, power up, plug a jack lead into the front panel, turn Mic Vol. 2 up and they’re ready to start!

5 Stereo Music Inputs: The first is a front panel jack socket that uses our exclusive iJax 6.35 to 3.5mm cable for access to a phone’s output. Then there are 3 standard RCA type inputs on the back plus our exclusive BGM input. Use the BGM input for either Virtual Classes audio or the club’s background music when classes are done. The neat thing about this input is the volume is governed by a rear mounted screw pot. The front volume control does not operate this input. Unsupervised members cannot turn up the volume of the BGM input any louder than the original setting.

Master Volume Control: An exclusive feature of the Aeromix 3+5LS is the Master Volume Control located on the back panel. So now your technician can set the volume when they hook it up so in theory your system will only go as loud as the Master Volume Control lets it!

Sound Limiting: A new feature is our Audio Slap limiting circuit. It delivers a -15dB music volume cut. You set it to activate at a chosen level using the Red LED on the front panel as a visual “overload” indicator. There's a screw pot “Ceiling” control to change the limiting point.

Zoom Sound Ready! The Aeromix 3+5LS contains a new A>D Converter board and a USB Type B output for connection directly to a computer. It will take your Voice over Music mix and feed it into your computer for simultaneous Zoom classes.

Combine it with our new dual channel Fitness Audio DX6 Digital Wireless package and 2 instructors can work together miked up through the 3+5LS
