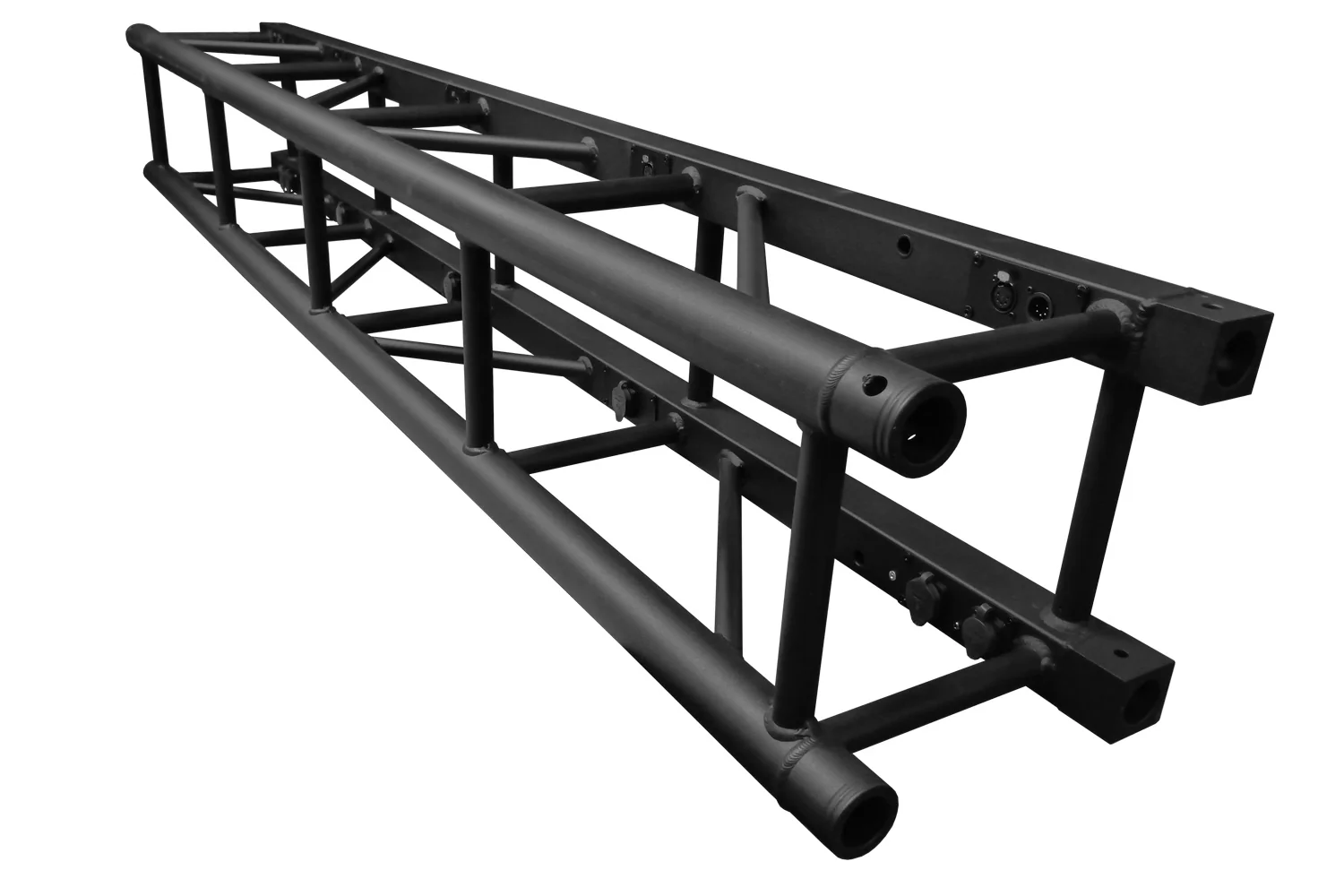

290mm Spigot Box Truss with Power and Data, 2mtr

290mm Power Truss (Black, 2mtr length)

Simplify your rig and cut down cabling with the T3BLSPD2BK a patent-pending power and data truss that integrates True1 power and 5-pin DMX connections directly into the truss structure itself. Purpose-built for lighting designers and touring crews who want faster builds, cleaner rigs, and fewer trailing cables.

Power and Data, Built In

Unlike standard truss, the T3BLSPD2BK features in-built True1 power and 5-pin DMX connections running the length of the structure, allowing power and data to be distributed directly through the truss rather than run separately alongside it. This significantly reduces cable clutter, speeds up load-in and strike, and creates a cleaner, safer rig, particularly valuable for spigot-mounted fixture runs where multiple units need both power and DMX along a single truss span.

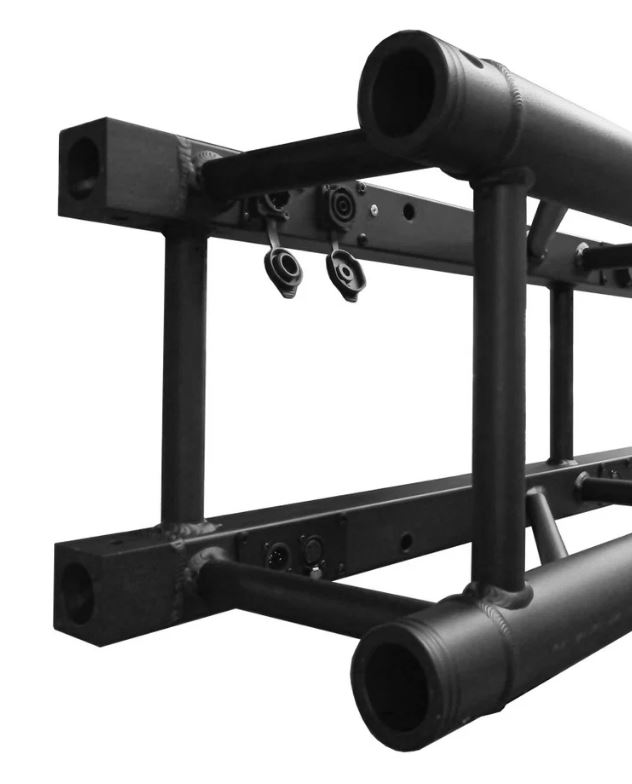

There is an INput at one end for both the power and DMX, 5 outputs along the length (about 400mm apart) and an OUTput at the end to link to the next piece of power truss.

Engineered for Strength and Reliability

Constructed from 6061-T6 aluminium alloy with a robust 50mm x 3mm main tube and 25mm x 2mm diagonal bracing, the T3BLSPD2BK is built to handle the demands of touring and installation work. A generous 3mm wall thickness adds extra durability where it counts, and the truss carries TUV certification for verified structural performance.

Rig-Ready Design

Two M12 rigging holes are positioned 250mm in from each end (1500mm apart), allowing straightforward spigot mounting of fixtures along the truss length. Finished in matte black to blend seamlessly into any lighting rig or stage design, the T3BLSPD2BK offers both functional and aesthetic consistency across your truss runs.

Key Features

• Integrated True1 power and 5-pin DMX connections
• 290mm aluminium truss with 3mm wall thickness
• 6061-T6 aluminium alloy construction
• 50mm x 3mm main tube, 25mm x 2mm diagonal bracing
• M12 rigging holes, 250mm from each end
• TUV rated for structural reliability
• Matte black finish
• 2m length

Length: 2m | Material: Aluminium alloy 6061-T6 | Finish: Black | Rating: TUV certified
