290mm Spigot Box Truss (0.5m) - Black

Manufacturer: Event Lighting

1 review(s) | Add your review

Aluminium Lighting Spigot Box Truss - 0.5m length 2mm wall

290mm aluminum lighting spigot box truss, 0.5m length, black finish.
Constructed from durable aluminum alloy 6061-T6 for strength and longevity.
Features a 2mm wall thickness for added structural integrity and support.
Complies with TUV standards, ensuring safety and reliability in use.
Versatile load ratings for various spans, accommodating diverse lighting setups.

SKU: T3BL05BK

Availability: Out of Stock - can backorder and will be dispatched once in stock.

$217.35 incl tax

Qty:

i h

Overview
Reviews
Contact Us

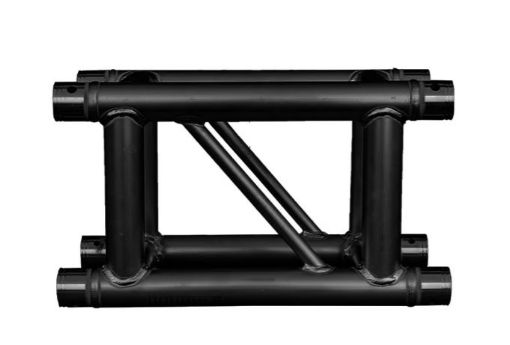

T3BL05BK – 290mm Spigot Box Truss (0.5m, Black)

This 0.5m length T3 series aluminium spigot box truss is perfect for building durable, professional-grade lighting rigs and event structures. Made from 6061-T6 aluminium with a 2mm wall thickness, it’s TUV-certified and finished in a sleek black powder coat for a polished look on stage or in venue installations.

Specifications:

Length: 0.5 metres
Main Tube: 50mm x 2mm
Vice Brace: 50mm x 2mm
Diagonal Brace: 20mm x 2mm
Material: Aluminium Alloy 6061-T6
Finish: Black, powder coated
Dimensions (L x W x H): 290 x 290 x 500mm
Certification: TUV

SPAN (M)	UNIFORM LOAD (KG/M)	CENTRE POINT LOAD (KG)	1/3 POINTS LOAD (KG)	1/4 POINTS LOAD (KG)

2	950	1300	1000	700
3	750	1200	900	650
4	550	1000	750	560
5	400	800	630	440
6	250	700	570	385
7	200	600	500	330
8	150	500	400	280
9	120	400	370	245
10	95	350	320	220
11	80	320	270	190
12	70	300	250	175

The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings

Warranty: 3 years
