Event Centre AV System Upgrade and Installation
Video projectors, large electric screens and digital HDMI widescreen video installed throughout the event spaces complete the overhaul of the AV and sound system in Ellerslie Event Centre, one of Auckland's busiest event facilities.
Ellerslie’s upgrade began way back in 2014 with a thorough evaluation of what could be re-used and what needed to be replaced. The audio system was upgraded and the Crestron Control system installed during 2015 (read about it on our Installations page). The video upgrade, stage 2 of the project, commenced in 2016. With the Crestron Control System already installed and running the audio, Ellerslie staff were dying to be able to run the video at the flick of a button too.
The original brief demanded quality, future proofing and efficiency – and Edwards hit the mark again in stage 2.
“The quality of our audio visual offering has been taken to the next level. The standard of the equipment installed and the control mechanisms have made a huge difference. We have seen an uplift in sales and are able to offer our clients a superior product at a great price.”
- Craig Fenwick, Executive General Manager, Hospitality & Events
Quality AV Equipment and Switching
Edwards selected a 16 x 16 digital video distribution matrix capable of handling HD video and routing it from anywhere to anywhere. Wide-screen and full HD data projectors were installed throughout the venue accompanied by large motorised screens.
 |  |  |

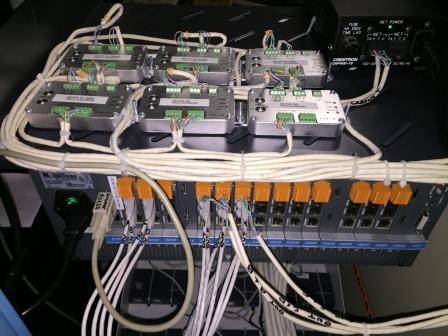

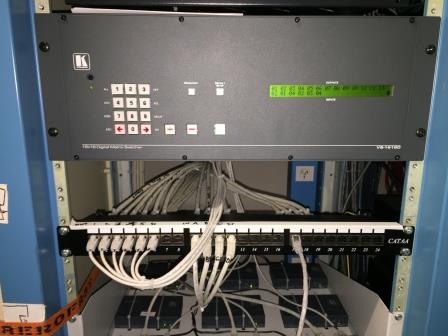

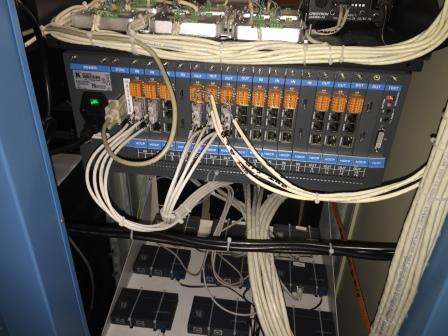

| Video system installation | Automated screens | Video matrix |
Future proofed AV System
Everything is completely automated and controlled by the 7" Crestron wall panels. Users can make audio adjustments, group projectors together, route inputs from anywhere in the building to any combination of screens and turn everything off at the press of a couple of buttons.
 |
| Crestron Control System |
This article was refreshed in 2025 and apart from some changes to the programming and naming for rooms, a panel replaced here and a new amplifier there, this system is still 98% as it was installed and running reliably for events multiple times every day.
Efficiency and cost saving
The clients benefit from larger than normal screens and lower installation and hire costs, and the venue benefits from the lack of “wear and tear” on equipment and cables being repeatedly installed and packed away. Remote monitoring of projector lamp hours, status and the ability to make adjustments from home means a saving on technicians being called in to correct simple mistakes if they do arise.
Plus the efficiency gains are only part of the equation when permanently installing equipment that is used on a regular basis. No more broken lamps, missing cables, battles with screen tripods and time wasted aligning the data projector image!
