Desk Microphone Paging Console with LCD

SIP, 10 buttons + 30 virtual buttons
SKU: M100
Availability: In stock
Call for pricing
i h

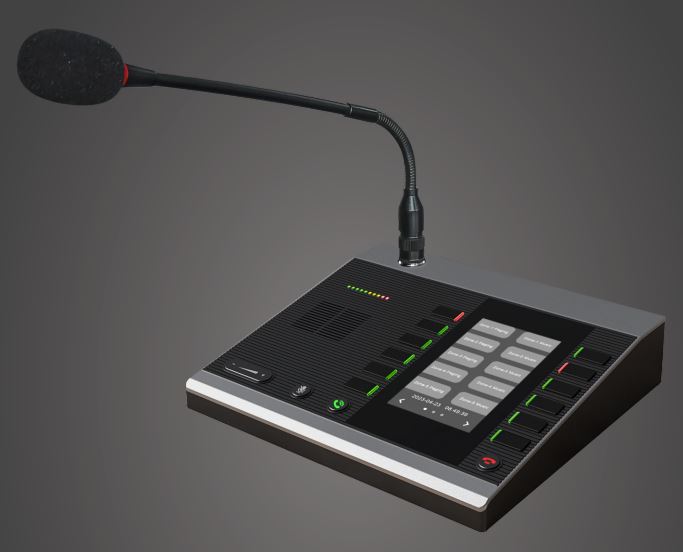

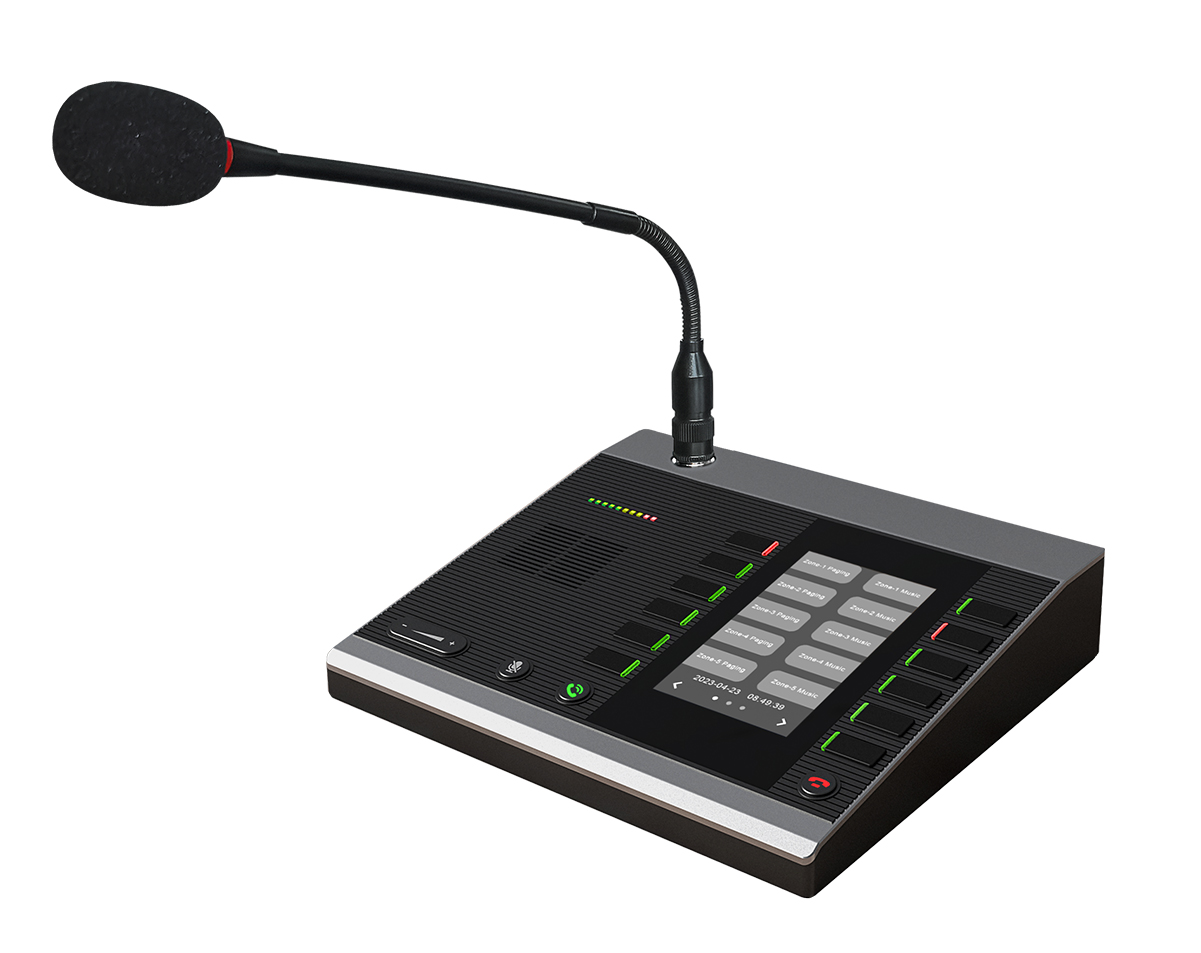

M100 Desk IP Paging Microphone Console

The M100 IP Dispatch Microphone Console is a versatile and high-performance, SIP-enabled device designed for seamless communication in various industries, including schools, transportation, hospitality, and emergency services. It features 30 programmable fast keys for functions such as paging, intercom, music playback, outbound phone calls, and emergency alarm activation. Utilising multicast and peer-to-peer technology, the M100 can act as a standalone, serverless console for individual and group paging, as well as internal calls.

Key Features

  • Versatile Functionality: The M100 supports serverless paging for up to 30 zones, using multicast technology for communication without a separate server. It also features an event scheduler that can schedule up to 30 events with specific date and time ranges. Additionally, it can send HTTP requests to external applications for added versatility.

  • Convenient Audio Options: The console includes a TF card slot for storing and playing pre-recorded messages and music. You can also connect an external music source, such as an MP3 player, to the system. The built-in speaker is a 445mm full-frequency component with a max SPL of 100dB.

  • Easy Integration and Installation: With standard SIP protocol support, the M100 easily integrates into existing infrastructures like an IP-PBX, creating a flexible and scalable communication system with other SIP devices. It is designed for easy installation with a single PoE cable, eliminating the need for extra power supplies.

  • Intuitive Controls: The console includes a 4.3-inch LCD display with a resolution of 480x272 pixels. It also has dedicated physical buttons for speed dial, page up/down, answer, hang-up, mute, and volume adjustment.

ItemSpecsM100
Mechanical PropertiesWeight1.2kg
Dimension210*190*46mm
Operating Temperature-20°C - 50°C ( -4°F - 122°F )
AudioAudio CodecsG.722, G.711 A-law, G.711 U-law, Opus
Audio StreamingMP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or stereo
Power SupplyExternal power supplyDC 12V 1A
PoEIEEE 802.3af/at

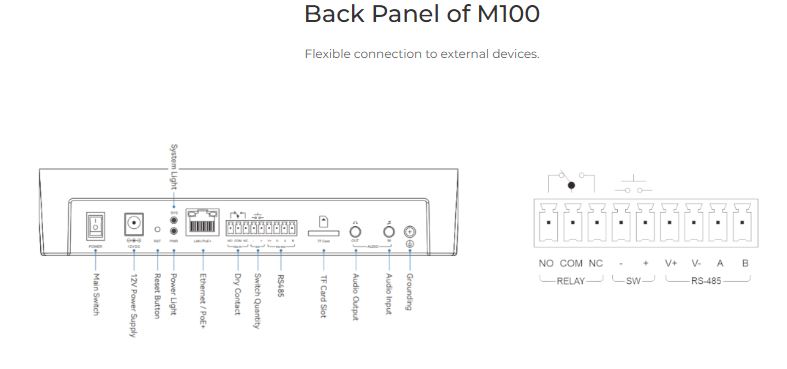

InterfacesAudio Input3.5mm audio jack
Audio Output3.5mm audio jack
Network Interface10/100Mbps
LCD DisplaySize4.3 inches
Resolution480p*272p
Color24-bit 8R8G
ApprovalsEN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 62368-1:2020+A11:2020 FCC Part 15 Subpart B Class A
