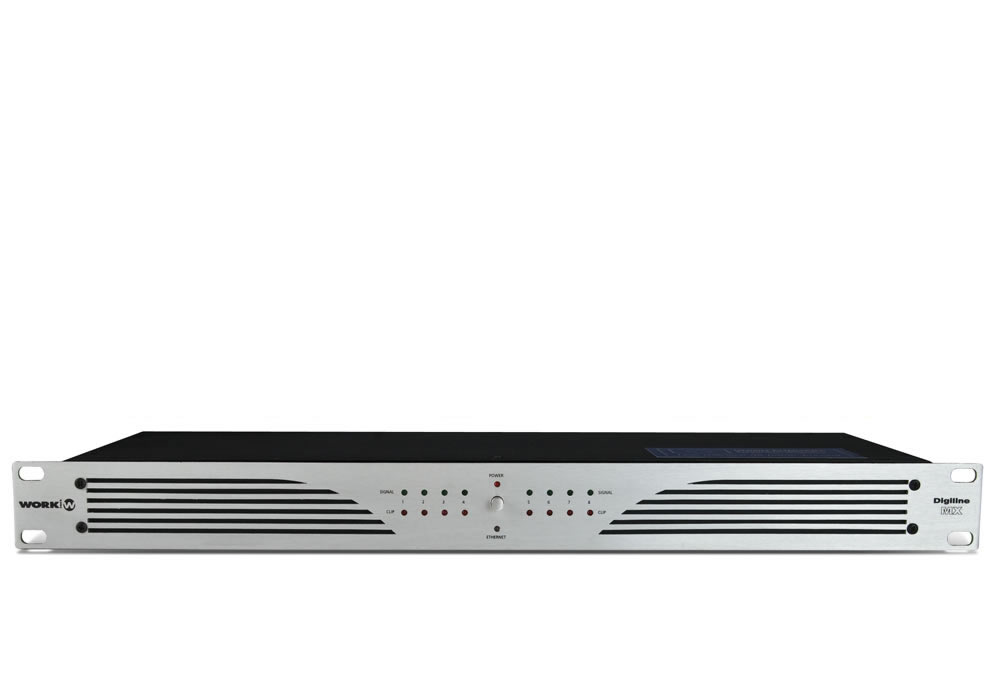

Digiline-MX Audio DSP Processor - 8in x 8out

Manufacturer: Work

1 review(s) | Add your review

SKU: 82MEG413

Availability: Out of Stock - can backorder and will be dispatched once in stock.

$1,598.50 incl tax

Qty:

i h

Overview
Specs
Reviews
Contact Us

Digiline MX is a standalone 8 in, 8 out digital audio matrix with adjustable and programmable EQ, limiters and signal routing. If you need built in amplifiers look at the Digiline 8 instead. In only one 19 inch rack unit, it is a very useful customisable device.

Multiple control options, it can be controlled and operated through ASCII commands via RS 232 or TCP/IP. It is simple to program automatic actions like recalling presets, mute any/ all channels, adjust volume, source select and independent zone routing, etc. It also features 12 GPIO inputs/outputs (vs 4 GPIO for Digiline 8), providing further configuration possibilities for external device (e.g. screen) control.

Digiline MX features a RS232 port for receiving ASCII commands from external devices.

Digital matrix mixer 8 x 8 (each input provides 2 choices: 1 Mic and 1 Line level).

Independent processing of signal for each output.

Controllable through TCP/IP protocol, in order to control over an Ethernet network.

Third party controllers can be connected to control Digiline by TCP/IP and RS232 thanks to the command reader incorporated by its firmware.

All MIC inputs provide phantom power.

Powerful software WorkCAD3 Designer for Digiline connection through TCP/IP.

GPIO triggering mode to launch actions, presets, etc from a simple controller.

DSP features

Matrix mixer: 8 mixers of 8 channels with reverse signal and mute for any channel.

Crossover: Butterworth type filters, Linkwitz-Riley and Bessel up to 4° order with up to 7 filters per output.

Equalizer: Eq with peak type curves, low pass, high pass, notch, low shelving, high shelving and band pass with up to 7 filter per output maximum.

Dynamic control: Common Limiter compressor for first 7 channels and an independent one for the last one.

Output channel volume control: Selectable via software and frontal potentiometer (36 dB to -109 dB range). 48 bit processing architecture with 76 bits of precision for most audio processing features.

Input & output delay with level controlled via software

Presets memory: 10 program memories available.

DSP Architecture: 32 bit processing with 40 bits of precision.

Oversampling: 8 x Oversampling with fifth order noise shaping @ 32-48 kHz; 4 x Oversampling @ 88.2 and 96 kHz; 2 x Oversampling @ 176.2 kHz and 192 kHz.

Digital De-emphasis: For 32,44.1 and 48 kHz.

TECHNICAL

Inputs: 8 double MIC inputs (with phantom) + LINE balanced and one additional MIC input. All of them have Euroblock connector.

Outputs: 8 outputs with Euroblock connector.

Control interface: TCP/IP, RS232 and GPI.

Control connections: RJ45 (Ethernet TCP/IP) , DB9 (RS232) and Euroblock (GPI).

Control software: WorkCAD Designer (included).

Control indicators: Frontal LEDs for signal presence, input & output clip.

GPIO terminals: 12 GPIO (TTL inputs/outputs selectable by software).

Input sensitivity: 0 dBu (20 dB PAD).

Phantom supply: 24 V MIC inputs (selectable).

THD+N: < 0.1 %.

Power requirement: 50 W.

Main supply: AC 90-264 V (automatic).

Dimensions (WxHxD): 483 x 44 x 229 mm.
